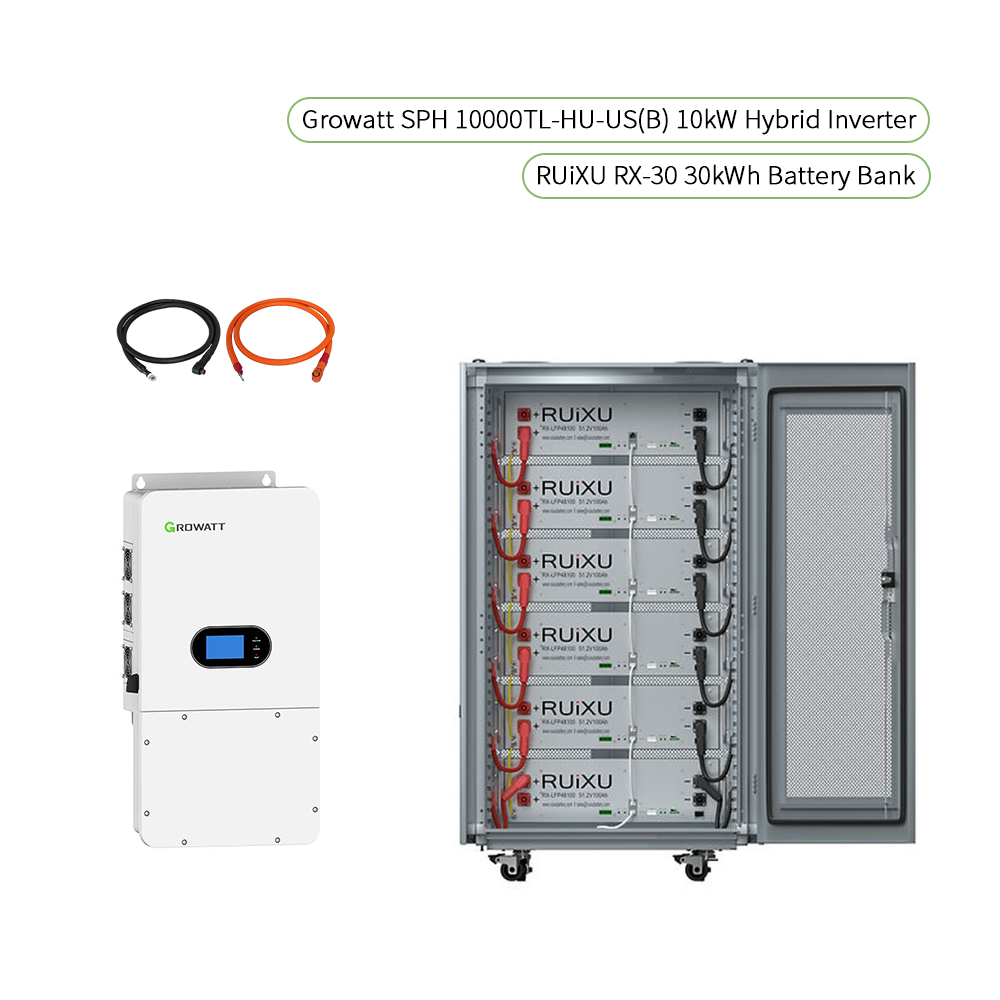

Growatt SPH 10000TL-HU-US (B) 10kW Hybrid Inverter + RUiXU RX-30 LFP 30kWh Battery Bank | RS485 or CAN | 10-Year Warranty

The Growatt SPH 10000TL-HU-US 10kW hybrid inverter offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits.

RUiXU RX-30 LFP 30kWh Battery Bank is a high-capacity LFP energy storage system designed for residential, commercial, and off-grid applications. This modular system offers scalability, safety, and compatibility with various inverters, making it a versatile solution for energy storage needs.

Package Contents

• Growatt SPH 10000TL-HU-US (B) Inverter
  (1) SPH 10000TL-HU-US (B) Inverter
  (1) User Manual
  (1) Mounting Brackets and Hardware
  (1) Communication Cables

• RUiXU RX-30 LFP 30kWh Battery Bank
  (6) RUiXU 48V Server Rack battery (RX-LFP48100)
  (6) RJ45/CAT5e Patch Cable
  (6) Ground Cable
  (6) Sets 30cm Parallel 4AWG Cables per battery
  (1) Pre-assembled 6 Slot Battery Cabinet

Growatt SPH 10000TL-HU-US (B) 10kW Hybrid Inverter

The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter's smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit.

Key Features

• Hybrid Functionality: Supports both grid-tied and off-grid applications, allowing for flexible energy management.

• UPS Capability: Provides an uninterruptible power supply with a swift 10ms transition time during outages.

• Multiple Operation Modes: Includes On-Grid, Off-Grid, Self-Consumption, and Zero Export modes to suit various energy needs.

• Advanced Monitoring: Equipped with WiFi/4G/Bluetooth connectivity for real-time monitoring and control via the Growatt ShinePhone app.

• Generator Compatibility: Supports charging from diesel generators, enhancing backup power options.

• Safety Features: Incorporates Type II surge protection for both DC and AC sides, along with protections against overload, over-temperature, and short circuits.

• Scalability: Supports parallel operation of up to 6 units, facilitating system expansion.

Datasheet

General data

RUiXU RX-30 LFP 30kWh Battery Bank

RUiXU battery packs are rack type residential lithium batteries, designed entirely for residential ESS applications, with our battery technology, you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your
power during grid outage or unavailable.

RX-LFP48100
Nominal voltage: 51.2V
Nominal capacity@0.2C: 100Ah
Min. capacity@0.2C: 100Ah
Nominal energy: 5120Wh
Dimesion (W*D*H): 482.6 x 460 x 133mm | 19 x 18.1 x 5.23inch
Weight: ~47kg (103.6lb)

Communications
Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485: MPP, Voltronic, RCT, Alpha outback

Download

Datasheet
SPH_10000TL-HU-US (B)_Datasheet_EN_202411.pdf
RX-LFP48100_Spec.pdf

User Manual & Installation Quick Guide
SPH_10000TL-HU-US(B)_User_Manual_EN_202410.pdf
SPH_10000TL-HU-US_B__Quick_Guide_20240923.pdf
RX-LFP48100_Operating_Manual V1.4.pdf

Certification
SPH 10K  ALP Battery UL9540
SPH_10000TL-HU-US_IEEE1547_UL1741_CSAC22.2_HECO_IEEE1741SB.pdf
SPH_10000TL-HU-US_FCC_Part_15C.pdf
SPH_10000TL-HU-US_CE_EMC.pdf
SPH_10000TL-HU-US_CE_LVD.pdf
RX_48100_UL1973_Certified.pdf

Warranty
Growatt_Warranty_Letter_For_North_America
