Growatt Inverters, Batteries and Whole-Home Backup Systems

A typical US residential Growatt whole-home backup design includes a MIN 3.8-11.4kW XH-US V3 inverter, a compatible APX high-voltage battery configuration, and SYN 200-XH-US transfer equipment. The 11A and 13A SYN versions serve different system designs; choose the 13A model when a generator port is required. Final equipment selection depends on the inverter version, backed-up loads and local code requirements.

Yes. A compatible Growatt MIN and APX system can use Time-of-Use (TOU) mode to coordinate solar production, battery charging and utility rates.

During the day, solar power supplies home loads first and excess production can charge the battery. Depending on the configured operating mode, the system can also charge from the grid during lower-cost periods.

During higher-cost evening hours, the battery can discharge until it reaches the configured minimum state of charge, after which the home draws from the grid. Available settings depend on the inverter version, firmware and local utility requirements.

The MIN XH-US is a high-voltage battery-ready inverter and is not designed for standard 48V low-voltage batteries. Depending on the exact MIN hardware version and system listing, compatible configurations may include Growatt APX or ARO high-voltage batteries and selected LG Energy Solution RESU Prime or enblock systems.

Battery compatibility and UL 9540 certification apply to specific inverter, battery, transfer equipment and firmware combinations. Verify the exact pairing in the current Growatt documentation and applicable UL or CEC listings before ordering.

Growatt APX batteries use module-level energy optimization, which is designed to support expansion with modules of different ages and states of charge. This can make future capacity expansion more flexible than battery platforms that require closely matched modules.

Before adding a module, confirm that its model, battery management components, firmware and installation method are approved for the existing system.

Yes, compatible APX systems are modular and can be expanded by adding approved battery modules within the capacity limits of the inverter and battery management system. Residential configurations are commonly listed from 5kWh to 30kWh.

Confirm the module model, firmware, power module and maximum supported capacity for the exact system before expansion.

Compatible Growatt MIN systems support operating modes such as self-consumption, Time-of-Use and export limitation. A properly installed Growatt smart meter and current transformers provide the measurements used to limit grid export.

In a typical zero-export configuration, solar power serves home loads first and can then charge the battery. Correct meter placement, commissioning and utility approval are essential; zero-export capability does not replace local interconnection requirements.

The MIN XH-US family has multiple hardware versions that use different backup and metering accessories. Check the serial number on the inverter nameplate before selecting a battery or transfer device.

For units sold through Self2Solar, a serial number containing "D" generally identifies V2 and one containing "O" generally identifies V3; units without either identifier may be V1. Because serial-number conventions can change, send a clear nameplate photo to PrimeService@self2solar.com for confirmation before ordering accessories.

Growatt MIN XH-US models are battery-ready grid-tied storage inverters for compatible high-voltage batteries. SPH models are hybrid inverters used with compatible 48V low-voltage storage. SPF and SPE models are off-grid inverter families for independent battery-based solar systems.

Choose the battery voltage that matches the inverter family. APX is a modular high-voltage platform used with compatible MIN XH-US systems and is commonly selected for grid-tied solar plus whole-home backup. Choose a listed 48V low-voltage battery for compatible SPH hybrid or SPF and SPE off-grid inverters.

Usable capacity, maximum system size and state-of-charge limits vary by inverter, battery model, firmware and certification. Compare the listed configuration rather than assuming that all high-voltage or 48V batteries are interchangeable.

The Growatt SPF family is designed primarily for off-grid battery-based systems. The SPH family is a hybrid inverter platform that can operate with the utility grid, solar and compatible battery storage. Choose between them based on interconnection needs, required backup loads and battery compatibility.

These families include 120/240V split-phase off-grid options, but they use different architectures. SPF 6000T and 12000T models use heavy low-frequency transformers and are suited to demanding inductive loads such as pumps, compressors, heat pumps and some air-conditioning equipment. These models require a compatible battery system to start.

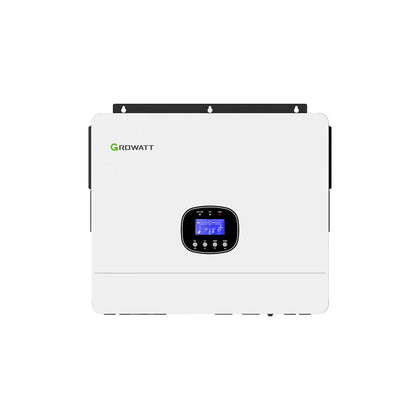

SPE 6000 and 12000 models use a high-frequency design and selected configurations can operate from solar without a battery. Confirm surge requirements, battery voltage and no-battery operation in the exact model manual.

Some Growatt off-grid models, including selected SPF 3500-5000 US and SPE 6000 / 12000 configurations, can operate from sufficient PV input without a battery. Other models, including SPF 3000TL LVM and SPF 6000T / 12000T transformer-based inverters, require a compatible battery to start.

Always confirm no-battery operation and minimum PV input requirements in the manual for the exact model.

Many residential Growatt products listed by Self2Solar support US 120/240V split-phase applications, including selected MIN XH-US, SPH, SPF and SPE models. Growatt also makes products for other grid voltages and three-phase systems, so verify the AC output and service voltage on the exact product page and datasheet before purchase.

It depends on the inverter family and system design. A compatible MIN inverter, high-voltage battery and ATS or SYN configuration can support grid-tied operation plus backup. A compatible SPH hybrid inverter and 48V battery can also support grid-connected solar and backup operation. SPF and SPE products are intended primarily for off-grid systems.

For help matching the inverter, battery and transfer equipment, contact PrimeService@self2solar.com.

The Growatt MIN XH-US family has three hardware versions with different compatible backup and metering accessories. V1 and V2 are used for grid-tied PV and selected partial-home backup configurations with the matching ATS and smart meter. V3 supports grid-tied PV and whole-home backup configurations using compatible SYN 200-XH-US equipment.

Identify the hardware version from the nameplate and verify the accessory matrix for that exact model before ordering.

Self2Solar stocks Growatt MIN inverters, SPH hybrid inverters, APX and ALP batteries, whole-home backup kits, SPF and SPE off-grid options, WIT three-phase inverters and accessories for residential and commercial projects. The Self2Solar team can help compare inverter family, battery voltage, backup load goals and compatible accessories before purchase.
