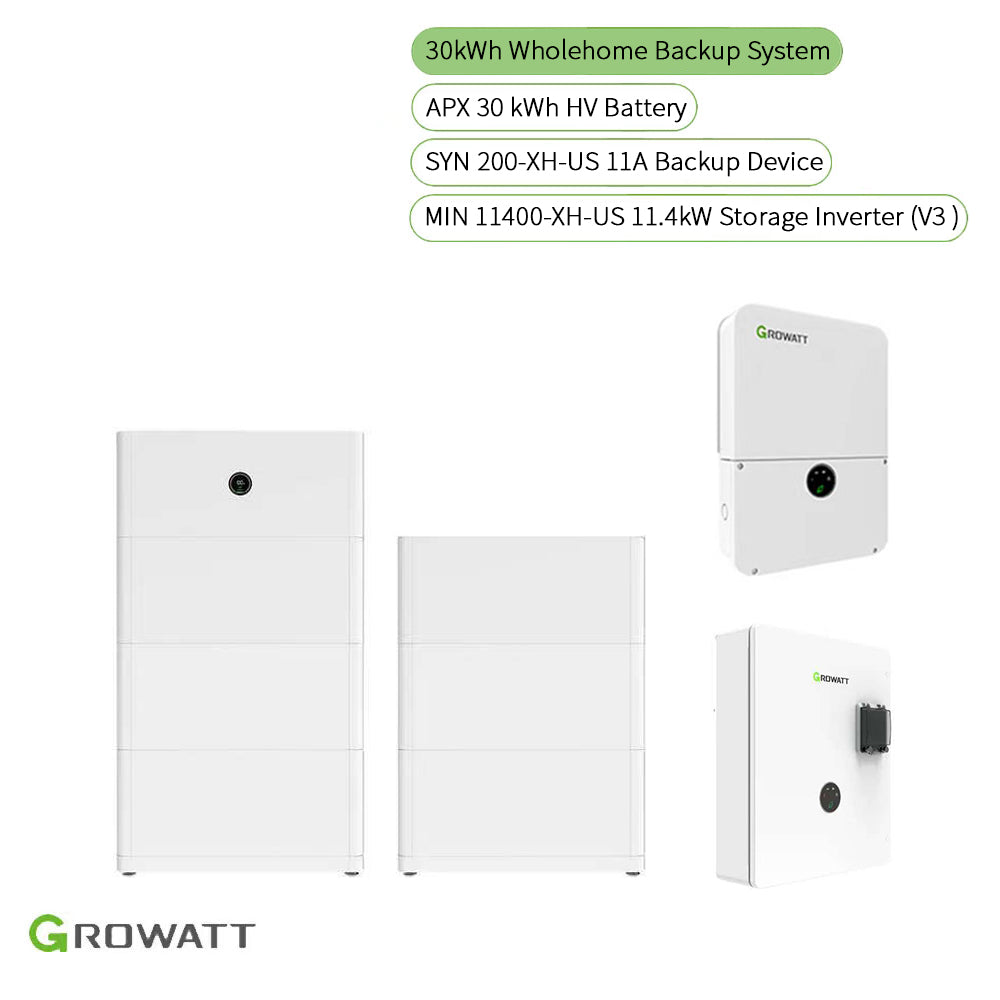

Growatt 30kWh WholeHome Backup System Kit | MIN 11400TL-XH-US (V3) 11.4kW Storage Inverter + APX 30kWh High Voltage Battery + SYN 200-XH-US 11A

The Growatt WholeHome Backup System integrates three key components to deliver a robust, scalable, and seamless energy solution for residential applications. With a Growatt MIN 11400TL-XH-US 11.4kW Storage inverter, 30kWh Growatt APX high voltage stackable battery system with 6 battery modules, and a Growatt SYN 200-XH-US 11A backup box for automatic transfer switch and US split phase transform with a simultaneous output 11400w that can support whole home backup.

System Key Features:

• Growatt MIN 11400TL-XH-US 11.4kW Storage Inverter ( V3 ) is a high-performance Storage inverter designed for both grid-tied and off-grid applications. With a 11.4kW output capacity, maximum 22.8kW PV input. It efficiently manages solar energy generation and storage, ensuring optimal performance for residential energy systems. This inverter is compatible with Growatt's APX high-voltage battery system, allowing for flexible energy storage solutions.


•  Growatt APX 30.0kWh battery system offers a scalable energy storage solution, providing up to 30 kWh of capacity, 12kW power output, the peak power output up to 19.2kW/60s. The stackable design allows for easy install and expand, supporting up to six 5kWh battery modules. This flexibility makes easy to config the storage capacity according to application need.


• Growatt SYN 200-XH-US 11A is an automatic transfer switch designed for whole-home backup applications. With 200A circuit breaker and a built-in split-phase transformer, supporting 120V/240V output and smart meter integrated. It ensures seamless switching between On/Off grid mode switch time within 0.5s, providing uninterrupted power supply during power outages. Additionally, it supports remote wake-up and control functions for enhanced flexibility.



Growatt MIN 11400TL-XH-US 11.4kW Split-Phase Storage Inverter

Key Features

• Battery ready for DC Coupled and AC Coupled systems
• Support backup power and dark start operations
• Multiple energy management modes support: Self-consumption, Zero export, TOU, and Off-grid
• Rapid shutdown solution and AFCI integrated
• Built-in 4G/Wi-Fi comm, with APP, IoT integrated cloud monitoring
• UL1741SA, CA Rule21 & HECO compliant

Datasheet

Growatt APX 30kWh High Voltage Battery Storage Systems

- 1 pcs  APX 55042-P0-US Power module
- 6 pcs APX 5.0P-B1-US Battery module
- 2 pcs  Battery base
- 1 pcs parallel connect cable

Key Features

• Easy Installation

• Safety and Reliability

• Expansion Flexibility

Product Specs

Growatt SYN 200-XH-US 11A Backup Box

Growatt auto transfer switch and US split-phase transformer

Key Features

• Backup Capability
  -Whole home power backup
  -On/Off-grid mode switch time within 0.5s
• Easy Operation
  -Integrated 200A breaker on the grid side
  -Built-in split-phase transformer for 120V/240V output
• Application Flexibility
  -Remote wake-up and control function

DOWNLOAD
Datasheet:
MIN 8200-11400TL-XH-US
APX_HV_Battery_Datasheet
SYN 200-XH-US

User Manual & Quick Guide
MIN 3000-11400TL XH-US Quick Guide(V2)
MIN 3000-11400TL XH-US User Manual(V3)
APX Battery User Manual
APX Battery  Installation Quick Guide
SYN 200TL-XH USER QUICK GUIDE

Certificate
MIN 3-11.4KTL-XH-US and ARO-US UL9540
MIN 7600-11400TL XH-US UL1747 SA
APX HV Battery UL9540A-1
APX HV Battery UL9540A-2
APX HV Battery UL1973
APX HV FCC
SYN 200-XH UL1747
