Growatt 19.8 KWh ARO LiFePO4 High Voltage Home Energy Storage Battery | Compatible with MIN-XH US series Grid-Tie inverter | UL 9540 Certificated

Vendor: Growatt
SKU: S-ARO198-US
Availability : In Stock In Stock Out of stock
  • Flexible capacity options, 9.9kWh to 19.8kWh
  • Excellent safety of LiFePO4 Battery
  • Long lifespan, cycle life> 6000
  • 10 years warranty
  • Compatible with Growatt MIN 3000-11400TL XH-US

See the specs >

$6,750.00$9,850.00 Save $3,100.00
Add to Wishlist

visamasteramerican expressshopify paydiscoverdiners clubapple paygoogle pay
Order in the next [totalHours] hours %M minutes to be processed in 72 hours or less and get it between and
Description

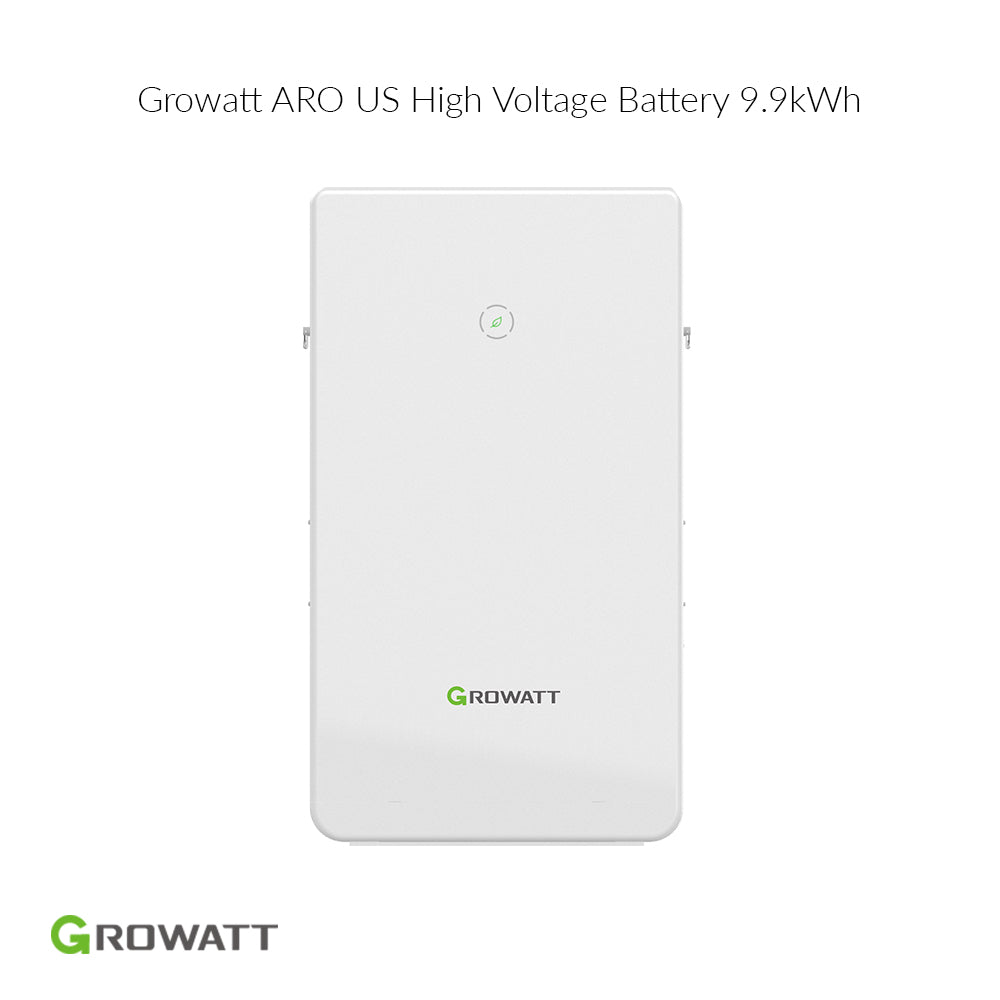

The Growatt 19.8 KWh ARO LiFePO4 high voltage Battery (2 pcs 9.9kWh )with its advanced LiFePO4 chemistry, delivers a longer lifespan and enhanced safety compared to traditional battery technologies. Its high voltage capacity also means fewer batteries are needed to achieve the desired power output, reducing installation time and costs.
Also designed with installers in mind, the Growatt 19.8 KWh ARO HV LiFePO4 Battery is easy to install and integrate into existing systems. Its compact and modular design makes it easy to handle and install in a variety of locations.

Product Overviews:

Manufacturer Growatt
Type LiFePO4 High Voltage
Battery Capacity 19.8kWh ( 2pcs ARO9.9kWh )
Dimensions(W*D*H) 25.6*12.6*45.7inch (650*320*1160mm)
Weight 596lbs ( 270 kg )
Installation Outdoor / Indoor ( Floor stand )
IP Protection IP56/NEMA Type 4x
Certificate UL9540, UL1973
Warranty 10 Years



Key Features:

  • Easy Installation
    - Easy power output expansion
    - Module automatic recognition
    - NEMA 4X for outdoor installation

  • Safety and Reliability:
    - Cobalt-free LiFePO4 battery
    - High cycle stability and long lifespan
    - Soft start to defend the system from surges
    - Whole system warranty

  • Smart O&M
    - Auto under-voltage wakeup
    - Remote diagnosis and upgrade

Product Specifications

  • Nominal Voltage: 400V
  • Operating Voltage: 350~550V
  • Max. Charge/Discharge Power: 5.2kW / 5.2kW
  • Max. Charge/Discharge Current: 14.3A@360V
  • DOD: 90%
  • Cycle Life: >6000 cycles
  • IP Protection IP56/NEMA Type 4x
  • Communication Protocol:  RS485, CAN

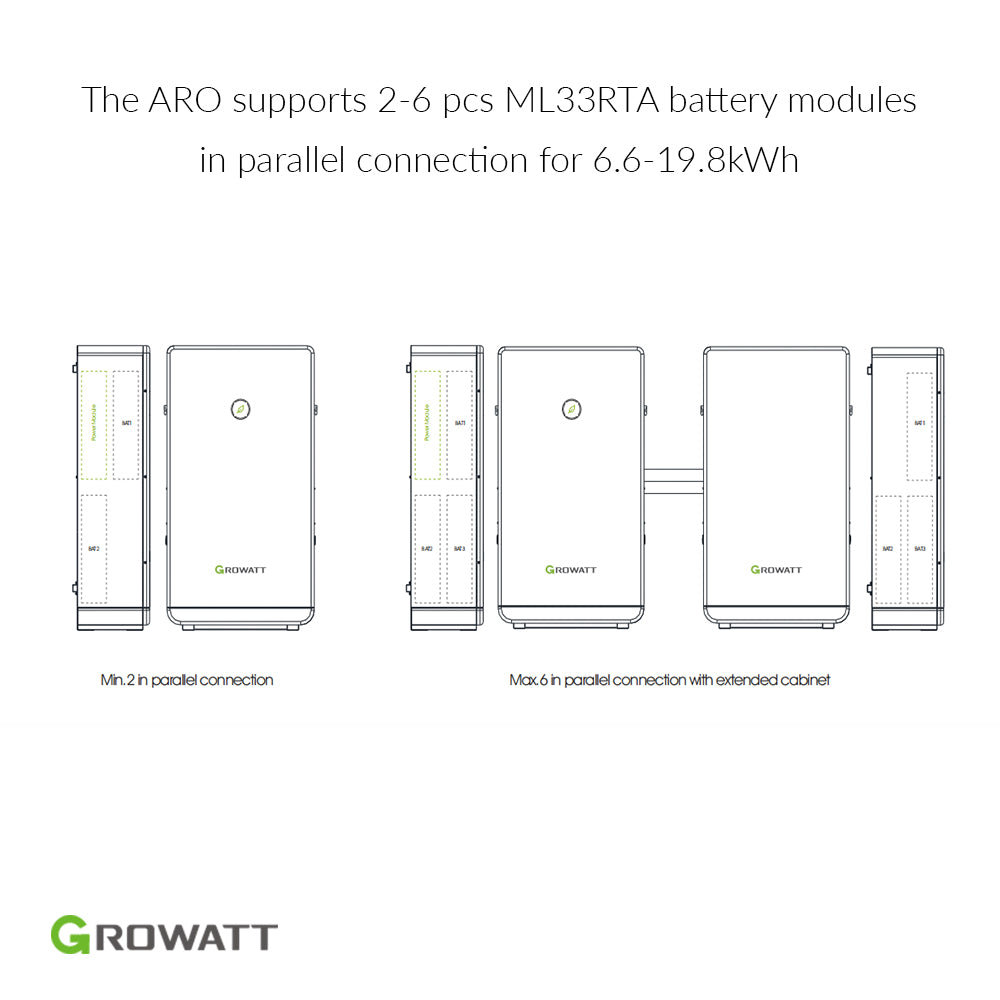

  • Connect style: Parallel

Shipping and Packaging

  • The battery can only ship via freight truck


Download
Datasheet
ARO HV Battery System-US Datasheet

User Manual & Installation Quick Guide
ARO-US User Manual

ARO-US Installation Quick Guide

Certificate
ARO-US UL1973

MIN 3-11.4KTL-XH-US and ARO-US UL9540
