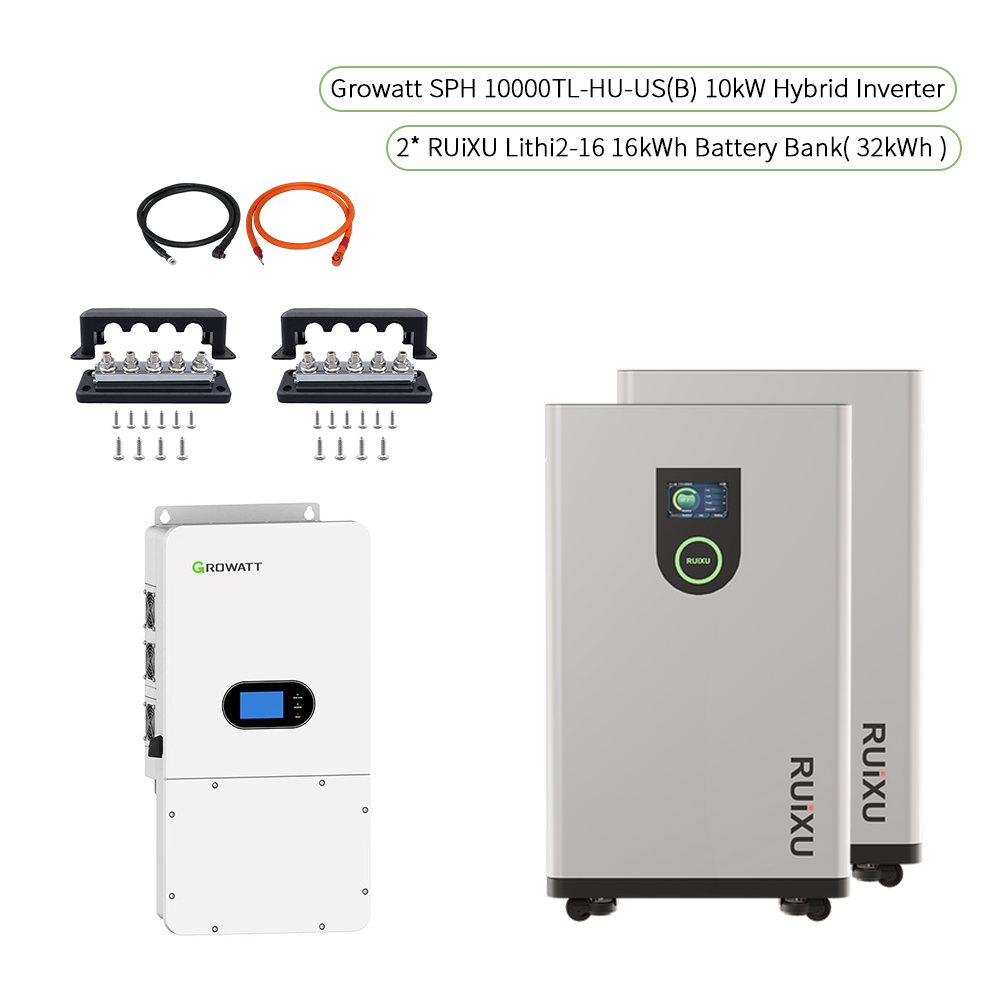

Growatt SPH 10000TL-HU-US (B) 10kW Hybrid Inverter + 2*RUiXU Lithi2-16 16kWh Battery Bank (32kWh) With Busbar RX5600 | RS485 or CAN | 10-Year Warranty

The Growatt SPH 10000TL-HU-US 10kW hybrid inverter offers split phase output at 120/240Vac, allow maxmium 15000W PV input and It includes 3 built-in MPPTs and protection against overload, over temperature, and short circuits.

The RUiXU Lithi2-16 is a high-capacity, 16kWh lithium iron phosphate (LiFePO₄) battery system designed for residential and commercial energy storage applications. It offers a blend of performance, safety, and user-friendly features, making it suitable for various energy needs.

Package Contents

• Growatt SPH 10000TL-HU-US (B) Inverter
  (1) SPH 10000TL-HU-US (B) Inverter
  (1) User Manual
  (1) Mounting Brackets and Hardware
  (1) Communication Cables

• 2*RUiXU Lithi2-16 16kWh LFP Battery Bank
  (2) RUiXU Lithi2-16


  (1) RJ45/CAT5e Patch Cable
  (1) Ground Cable
  (1) Set of  parallel 1/0 AWG  OP140 or PP140 cable

• RUiXU Busbar | 3/8" (M10) Terminal Studs | One Pair | 600A

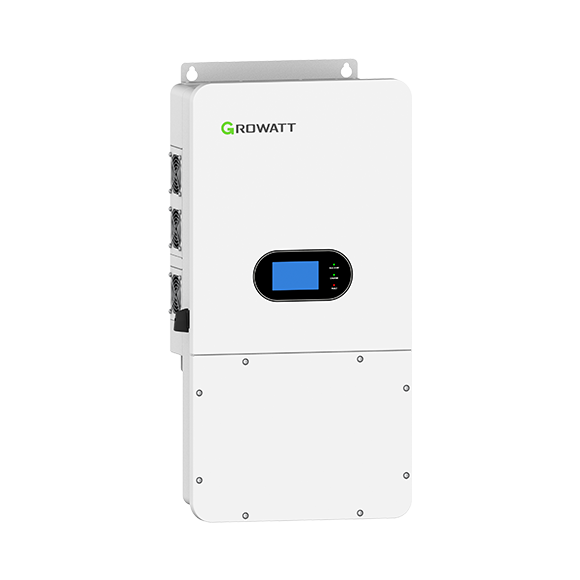

Growatt SPH 10000TL-HU-US (B) 10kW Hybrid Inverter

The SPH 10000TL-HU-US 10kW hybrid inverter can compatible with both grid voltage and generator power, it automatically restarts when AC power is lost. The inverter's smart battery charger is designed for optimal battery performance and supports WIFI/4G/Bluetooth monitoring. Additionally, it allows for programmable supply priority between battery and grid, and supports multiple operation modes: On Grid Mode, Self-consumption Mode, and Zero Export Limit.

Key Features

• Hybrid Functionality: Supports both grid-tied and off-grid applications, allowing for flexible energy management.

• UPS Capability: Provides an uninterruptible power supply with a swift 10ms transition time during outages.

• Multiple Operation Modes: Includes On-Grid, Off-Grid, Self-Consumption, and Zero Export modes to suit various energy needs.

• Advanced Monitoring: Equipped with WiFi/4G/Bluetooth connectivity for real-time monitoring and control via the Growatt ShinePhone app.

• Generator Compatibility: Supports charging from diesel generators, enhancing backup power options.

• Safety Features: Incorporates Type II surge protection for both DC and AC sides, along with protections against overload, over-temperature, and short circuits.

• Scalability: Supports parallel operation of up to 6 units, facilitating system expansion.

Datasheet

General data

RUiXU Lithi2-16 16kWh LFP Battery Bank

The RUiXU Lithi2-16 is a 16kWh lithium iron phosphate (LiFePO₄) battery designed for residential and commercial energy storage applications.

Lithi2-16 Specs

Nominal voltage: 51.2V
Nominal capacity@0.2C: 314 Ah
Min. capacity@0.2C: 314 Ah
Nominal energy : 16.07kWh
Dimesion(W*D*H): 924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch
Weight: ~145kg（320lb)
Cycle life@80% DOD: ≥9500 cycles;

Communications

Canbus : Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 : MPP, Voltronic, RCT, Alpha outback

RUiXU Busbar | 3/8" (M10) Terminal Studs |  600A | RX5600

The RX5600 busbar is frequently utilized in configurations involving the RUiXU Lithi2-16 battery. It aids in the parallel connection of multiple battery units, ensuring balanced power distribution and streamlined wiring.

Dimensions (HxWxD)(with cover) :2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm
Weight:1.7 lb / 0.75 kg

• Heavy Duty 5-Post Power/Ground Distribution Busbar
• (X5) 3/8" Terminal Post & (x4) 14mm Fastening Nuts
• Constructed out of Highly Conductive Nickel Coated Copper
• Features a Robust Polymer Mounting Base
• Each busbar is fitted out with a removable protection cover

Download

Datasheet
SPH_10000TL-HU-US (B)_Datasheet_EN_202411.pdf
RX_Lithi2-16-Spec.pdf
RX5600_RX8600_SPEC.pdf

User Manual & Installation Quick Guide
SPH_10000TL-HU-US(B)_User_Manual_EN_202410.pdf
SPH_10000TL-HU-US_B__Quick_Guide_20240923.pdf
RX_Lithi2-16_operation_and_Maintenance_manual-V1.2.pdf

Certification
SPH 10K  ALP Battery UL9540
SPH_10000TL-HU-US_IEEE1547_UL1741_CSAC22.2_HECO_IEEE1741SB.pdf
SPH_10000TL-HU-US_FCC_Part_15C.pdf
SPH_10000TL-HU-US_CE_EMC.pdf
SPH_10000TL-HU-US_CE_LVD.pdf

Warranty
Growatt_Warranty_Letter_For_North_America

About Growatt

Growatt is a leading global manufacturer of solar inverters, energy storage solutions, and smart energy management systems. Founded in 2010, the company has grown rapidly to become a trusted brand in the renewable energy industry, with a presence in over 100 countries and regions around the world.

Growatt's innovative products are designed to maximize energy efficiency and enable customers to reduce their carbon footprint while saving money on energy bills. The company's range of solar inverters includes both string and central inverters, which are suitable for a wide range of applications, from residential rooftops to large-scale commercial and utility-scale projects.

In addition to solar inverters, Growatt also offers a range of energy storage solutions, including lithium-ion batteries and hybrid inverters. These products allow customers to store excess energy generated by their solar panels and use it when needed, further reducing their reliance on grid power.

With a commitment to innovation and customer service, Growatt is dedicated to providing reliable, high-quality products and solutions that meet the evolving needs of the renewable energy industry.

About RUiXU

RUiXU batteries are a line of energy storage solutions known for their reliability and performance. These batteries are designed to deliver consistent power over extended periods, making them ideal for a wide range of applications including electronics, vehicles, and renewable energy systems. RUiXU batteries are recognized for their durability and efficiency, offering users a dependable source of power for various needs. Whether for everyday use or specialized applications, RUiXU batteries are engineered to meet high standards of quality and reliability in energy storage technology.
