Sigen Energy Controller | 11.5kW 120/240V Output | 23kW Input | Compatible with SigenSto BAT 6.0/9.0 | UL 1741 9540 Certificate CEC Listed
- Nominal Output Power up to 11.5KW
- Max PV Input up to 23KW
- EMS inside for precise control.
- Multi-source black start
- On & off-grid compatibility
- 4 MPPTs with 2:1 DC/ AC ratio (oversize PV)
- NEMA 4X system enclosure
- NEC rapid shutdown compliant.
- Seamless switching experience.
- AFCI function integrated
See the specs

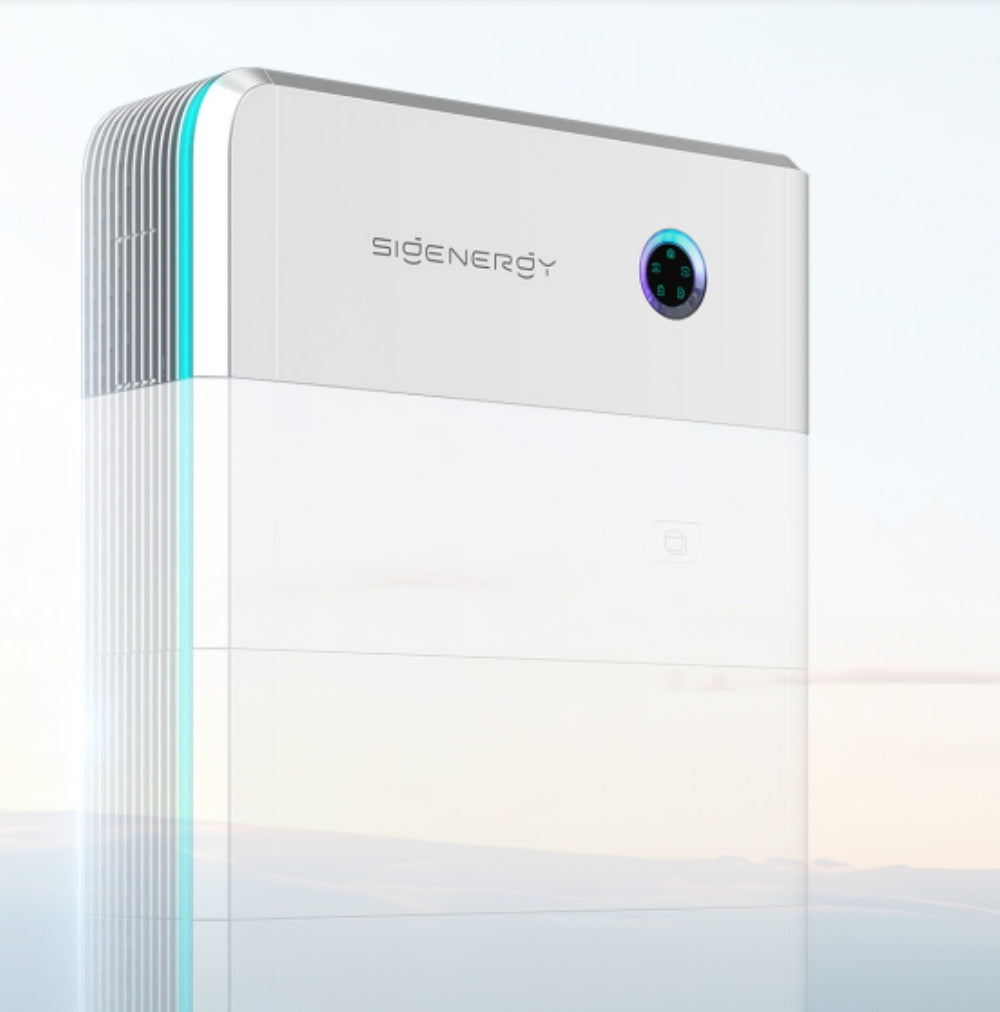

The SigenStor Energy Controller is a hybrid/energy management unit in Sigenergy’s 5-in-1 home ESS (Energy Storage System). It is designed to handle both on-grid and off-grid scenarios (i.e. can supply or switch over during grid outages) and allows “black start” from multiple sources. It is modular / scalable: you can add battery modules (up to 6 per controller) to increase capacity. Multiple controllers can be paralleled for larger systems.
Product Overview
| PG Controller | Split-phase hybrid output |
| Nominal Output Power | 11400W |
| Max PV Input | 22800W |
| Number of MPPT Trackers | 4 |
| Max input Current per MPPT | 16A |
| Max Short-circuit Current per MPPT | 20A |
| Max. Efficiency | 97.61% |
| Max. PV Input Voltage | 600V |
| Compatible battery module | Pack 6.0 / 9.0 |
| Dimensions(W*H*D) | 27.6*11.8*10.2 inch (700*300*260 mm) |
| Weight | 77.1lb |
| Communication | WLAN/Fast ethernet/RS485/ PG CommMod (4G/3G ) |
| Compliance |
UL1741, IEEE 1547-2018, FCC Part15 Class B UL1741 SB, UL1741 CRD, UL1699B |
| Warranty | 10 Years |
Key Features
- EMS inside for precise control.
- Multi-source black start
- On & off-grid compatibility
- 4 MPPTs with 2:1 DC/ AC ratio (oversize PV)
- NEMA 4X system enclosure
- NEC rapid shutdown compliant.
- Seamless switching experience.
- AFCI function integrated
Product Specifications
- Max. PV input voltage: 600V
- MPPT Voltage Range: 50 ~ 550V
- Max. PV input current per MPPT: 16
- MPPT Trackers & Strings: 4/1
- Max. Continuous AC Out current : 47.5A
- CEC efficiency (PV): 97.61%
- Enclosure rating: Type 4X
- Cooling Method: Controller (Smart air cooling) / Battery (Natural convection)
- Communication Protocol: WLAN, Fast Ethernet(FE), RS485, PG Commond(4G/3G)
Shipping and Packaging
- The battery can only ship via freight truck
Download
Datasheet
Datasheet_-_Sigen_energy_controller_US.pdf
