Sigenergy SigenStor-11.5-18.08 Home Energy Solutions (With LoadHub) | 11.5kW 18.08kWh| Split-Phase Hybrid | Certified UL9540 & CEC Listed
- 5-in-One
Integrating the Solar Inverter, an optional bi-directional EV DC Charger, the Battery PCS, Battery Packs, and the EMS into one powerful energy system - DC-Coupled & AC-Coupled Supported
Flexible add to any existed solar system and expand PV system . - Whole home backup & Partial home backup
- Optional V2X Module EV DC Bidirectional Charger
25kW 25FT Cable, CCS1 and NACS model - Battery Pack flexible config
2 battery pack capacities for 1-6 pack configuration, from 6.02kWh up to 54.24kWh

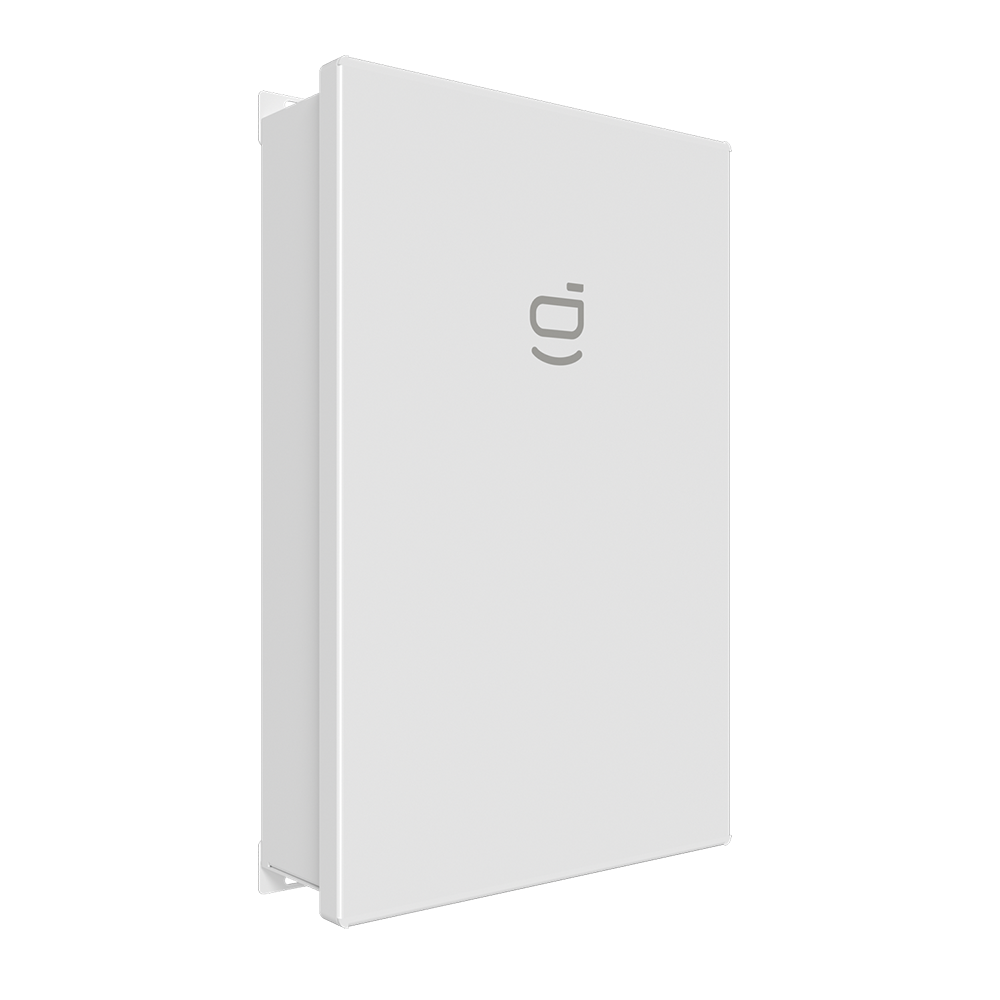

6.02 / 9.04 kWh for each module - PG Loadhub
200A Service Entrance rated
5 double-pole smart controllable loads
0 ms load-side disruption
Generator Supported
See the specs

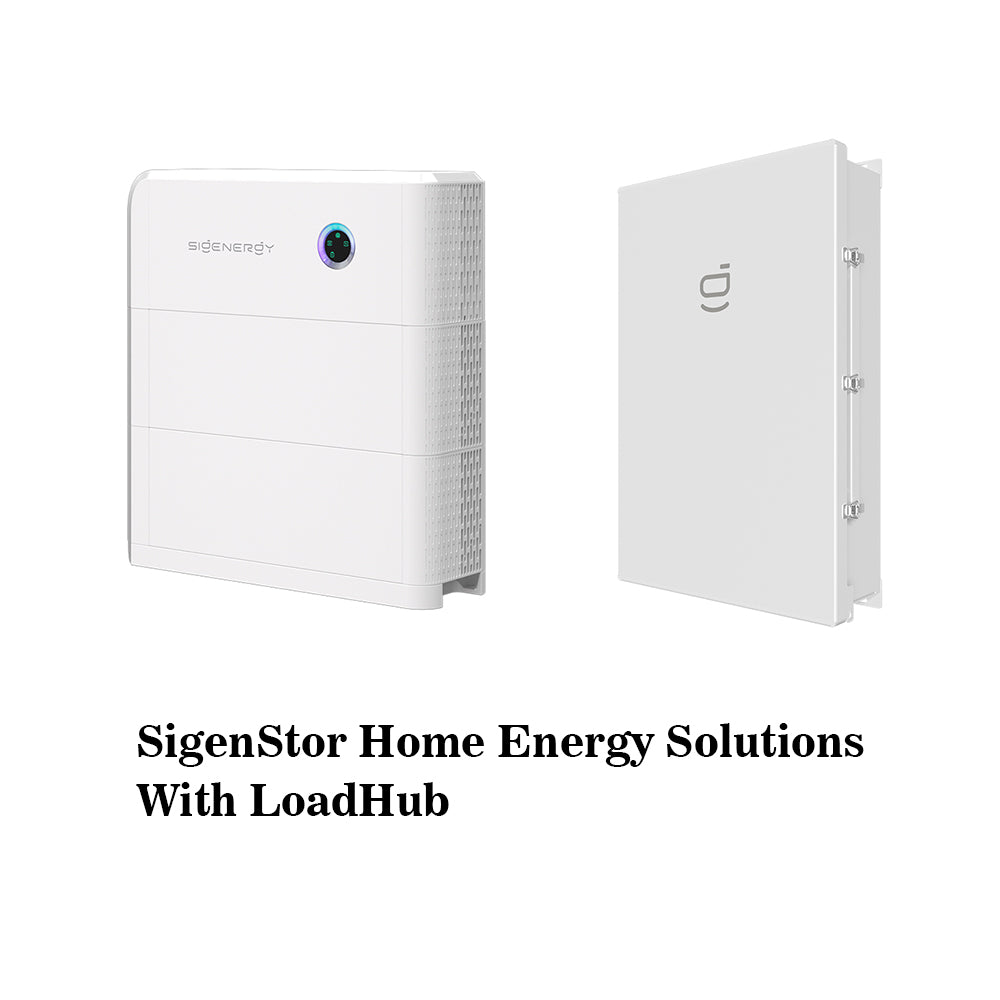

SigenStor Home Energy Solutions
✓ Authorized PointGuard Distributor
✓ Free Shipping
✓ In Stock Ready To Ship
✓ Questions? Email to a Self2solar Expert: PrimeService@Self2solar.com
Replying within 30 minutes.
August Sale:
- $500 OFF With Coupon code: PG500
- Free Shipping

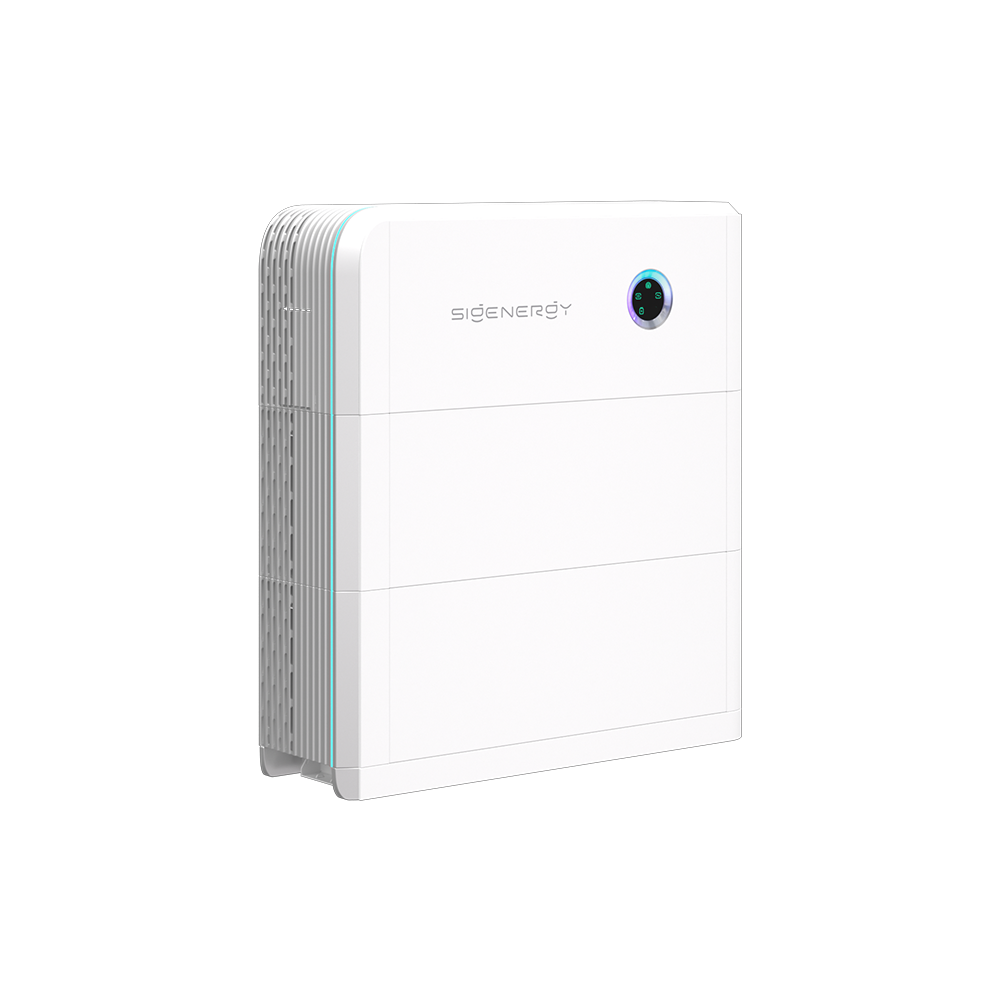

The SigenStor system: an integrated “5-in-1” home energy solution. It combines the solar inverter (or hybrid inverter), battery pack(s), battery power conversion system (PCS), energy management system (EMS), and EV/DC charging interface in one modular system.
They also offer a “Smart Home” ecosystem for homes where solar + storage + smart loads are integrated via their app and smart devices.
Product Overview
| Battery Type | LiFePO4 |
| Total Energy Capicity | 18.08kWh |
| Module Qty | 1 EnergyController 2*SigenStor BAT9.0 1 Base |
| Nominal Output Power | 11.5kW |
| Max. Solar STC Power | 23kW |
| Max. PV Input Voltage | 600V |
| Easy Scalable | Max to 5 Modules up to 54.24kWh |
| Weight | Controller: 77.1 lbs/35 k g SigenStor BAT9.0: 172.0 lbs/78 kg SigenStor BAT6.0: 136.7 lbs/62 kg Base: 7.7 lbs/3.5 kg |
| Mounting | Floor standing / Wall-mounted (optional) |
| Safety And EMC |
UL9540A, UL9540, UL1973:2022, UL1741, UL1741 SB, UL1741 CRD, UL1699B |
| Warranty | 10 Years |
Key Features
-
5-in-One, Full Integration
Integrating the Solar Inverter, an optional bi-directional EV DC Charger, the Battery PCS, Battery Packs, and the EMS into one powerful energy system. -
Expandable On Demand
With 6 and 9 kWh battery packs, flexible capacity combinations can be created to suit your needs at different stages of your independent home energy journey.
-1~6 batteries per pack
-10 (Max.) stacks in parallel
-6~54Kwh capacity per system -
Tough By Design, Peace Of Mind
-314 Ah large capacity battery cells, long lifespan
-6 major safety strategies in each battery pack
-Multi-source black start capability, uninterrupted power
-NEMA 4X enclosure type, install anywhere -
Effortlessly Efficient
-Self-guiding pin connectors between modules automatically connect once stacked, avoiding the need for field wiring and saving installation cost.
-As a DC-coupled system, DC-DC Optimizers in each battery pack and parallel pack-connections drive better long-term performance by avoiding battery mismatch. -
AI Optimized, Future Proof
Experience AI-assisted support, monitor deployed systems and perform remote diagnostics all via our myPointGuard App. System owners will enjoy AI-assisted energy planning, safety features and grid-services. -
Two-way EV Charging, Pioneering V2X (optional)
-With the Sigen Home DC-coupled charging module, you can harness the power of the sun and directly charge your EV with clean solar energy.
-Additionally, its bi-directional capability allows you to tap into the power of your EV to backup your home during a power outage.
Product Specifications
- Max. PV input voltage: 600V
- MPPT Voltage Range: 50 ~ 550V
- Max. PV input current per MPPT: 16
- MPPT Trackers & Strings: 4/1
- Max. Continuous AC Out current : 48A
- Nominal Output Voltage: 240/120V
- Enclosure rating: Type 4X
- Cooling Method: Controller (Smart air cooling) / Battery (Natural convection)
- Communication Protocol: WLAN, Fast Ethernet(FE), RS485, PG Commond(4G/3G)
Shipping and Packaging
- The battery can only ship via freight truck
Download
Datasheet
Brochure_Sigenergy_Home_solutions.pdf
Datasheet_- SigenStor_BAT_Battery_6.0-9.0_US.pdf
Datasheet_-_Sigen_enegy_controller_US.pdf
Datasheet_-_Sigen_LoadHub_US.pdf
Datasheet_-_Sigen_EV_DC_US.pdf
User Manual
SigeStor_Home_Install_Manual.pdf
-01-SigenStor_Home_Important_Notice_EN.pdf
-02-SigenStor_Home_Installation_Guide_EN.pdf
-03-SigenStor_Home_Alarm_list_EN.pdf
Certification
HUB
Sigen_LoadHub_Installation_Guide
-01-Sigen_Home_Important_Notice_EN.pdf
-02-Sigen_LoadHub_Installation_Guide_EN.pdf
-03-Sigen_LoadHub_Alarm_list_EN.pdf
APP
About Sigenergy
Sigenergy is a forward-thinking company focusing on developing cutting-edge home and business energy solutions, including energy storage systems, solar inverters, and EV chargers. Our world-class R&D team of hundreds of industry talents shares the vision of making the world greener through continuous innovation.
By integrating the latest power electronics, digital, and AI technologies, we build next-generation energy products with optimum safety features. With global sales and services, we aim to become our customers' most trusted partners on their journey to a more sustainable future.
PointGuard ALL-IN-ONE System FAQ
PointGuard ALL-IN-ONE system can support AC-Couple hook to existed solar system. Only having third-party inverter ( String inverter, Microinverter ) wiring to PointGaurd Loadhub, the PointGuard myPointGaurd APP will manage the whole system
The PointGuard system can support whole home backup and partial home backup.
Each battery stack capacity can expand to 37.62kWh, Maximum 7 battery stacks can parallel to one PG Loadhub for a maximum 233.34kWh storage capacity.
The PointGuard V2X EVDC bidirectional charger cannot operate independently; it must be integrated with the PointGuard Home storage system. This storage system must include at least one battery. Since the electric vehicle cannot black-start on its own—it requires the PG-Home system to initiate and discharge power to household loads.
You can add new battery modules to the existed PG system any time ccording to your need. The PG Pack5.0 and Pack8.0 module is with the same dimension, it is flexible to config any storage capacity you need. Each battery module with a built-in DC optimizer to ensure the highest battery efficiency.
Yes, the PointGuard system support generator, there is a generator port in PointGuard Loadhub.
Yes, the PointGuard system supports VPP (Virtual Power Plant). It offers powerful APIs that can integrate with the local utility company's API, enabling coordinated control between the system and the grid. If needed, please contact your local utility provider for more details.
The PointGuard system provide a standard 10-Year warranty.
