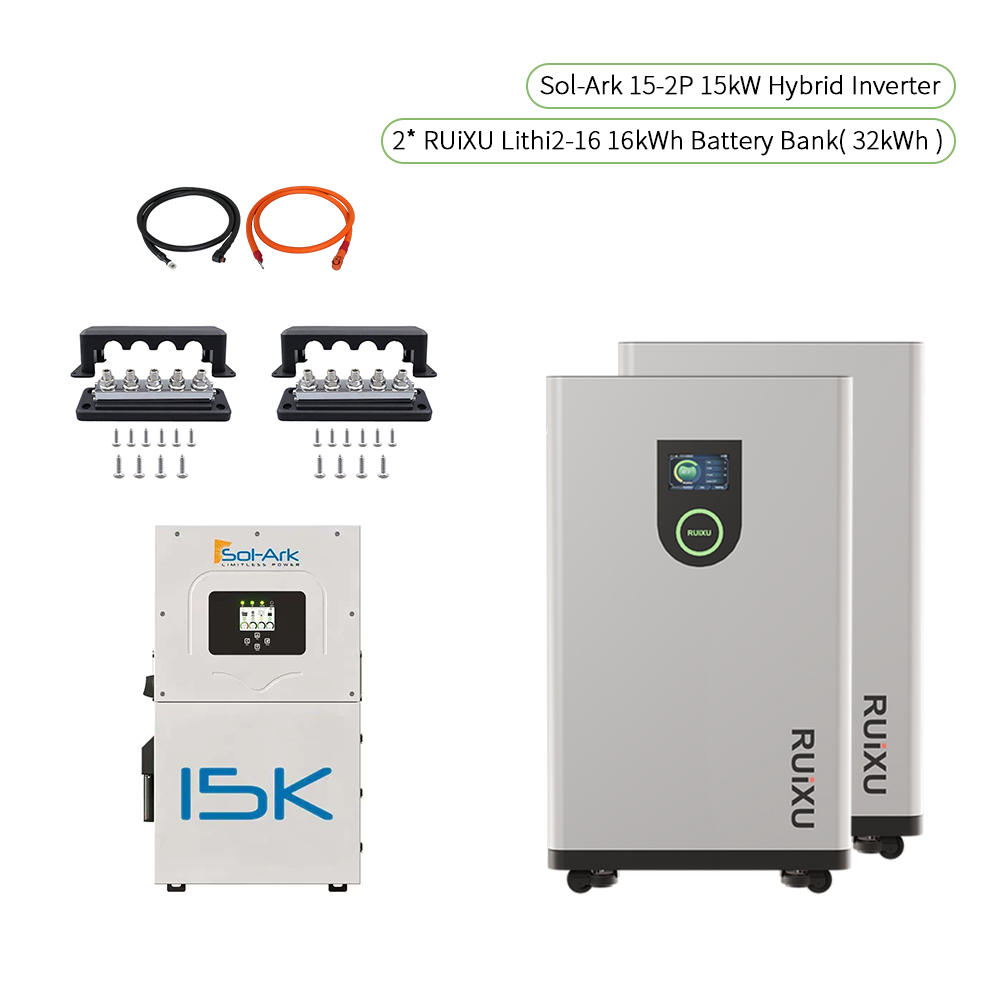

Sol-Ark 15K-2P 15kW Hybrid Solar Inverter + 2*RUiXU Lithi2-16 16kWh Battery Bank (32kWh) With Busbar RX5600 | RS485 or CAN | 10-Year Warranty

The Sol-Ark® Whole Home hybrid inverter is the most powerful and versatile home energy storage solution on the market today. The Sol-Ark 15K-2P hybrid solar inverter is a complete whole home backup. It can also power and charge your electric vehicles or generators and help reduce your monthly electricity bills.

The RUiXU Lithi2-16 is a high-capacity, 16kWh lithium iron phosphate (LiFePO₄) battery system designed for residential and commercial energy storage applications. It offers a blend of performance, safety, and user-friendly features, making it suitable for various energy needs.

Package Contents

• Sol-Ark 15K-2P 15kW Hybrid Solar Inverter
  (1) 15K-2P 15kW Hybrid Solar Inverter
  (1) CAT 5E communication cable
  (1) Temperature sensor
  (1) User manual
  (1) Wi-Fi / Ethernet antenna (dongle)
  (1) Current transformer sensors (CTs)


• 2*RUiXU Lithi2-16 16kWh LFP Battery Bank
  (2) RUiXU Lithi2-16


  (1) RJ45/CAT5e Patch Cable
  (1) Ground Cable

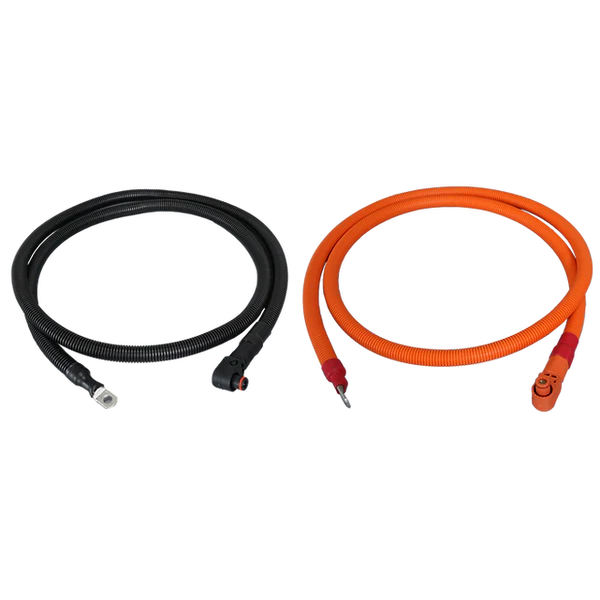

  (1) Set of  parallel 1/0 AWG  OP140 or PP140 cable

• RUiXU Busbar | 3/8" (M10) Terminal Studs | One Pair | 600A

Sol-Ark 15K-2P 15kW Hybrid Solar Inverter

Sol-Ark 15K-2P Pre-Wired All-In-One Hybrid Inverter System is an all-in-one system that has everything you need built-in. With a charger controller, a display with remote monitoring, and many other built-in features. This inverter is flexible, efficient, and simple to install to a Grid-tied, Off-Grid, or battery backup solar system while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator. It's a great choice to simplify your installation.

Key Features

• Simple to install:
  all-in-one and with a touchscreen and friendly interface


• Grid-Tie mode:
  sell your power back to the grid, lower your electricity bill


• Time of use:
  use the battery system to minimize your grid power usage


• Meter Zero Mode:
  Smart meter included Zero on your electricity bill


• Fleet management:
  Quickly repair or adjust any system without being on-site


• Battery Agnostic:
  With a wide variety of 48V batteries ( lead or Lithium )


• DC and AC Coupling


Datasheet

RUiXU Lithi2-16 16kWh LFP Battery Bank

The RUiXU Lithi2-16 is a 16kWh lithium iron phosphate (LiFePO₄) battery designed for residential and commercial energy storage applications.

Lithi2-16 Specs

Nominal voltage: 51.2V
Nominal capacity@0.2C: 314 Ah
Min. capacity@0.2C: 314 Ah
Nominal energy : 16.07kWh
Dimesion(W*D*H): 924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch
Weight: ~145kg（320lb)
Cycle life@80% DOD: ≥9500 cycles;

Communications

Canbus : Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485 : MPP, Voltronic, RCT, Alpha outback

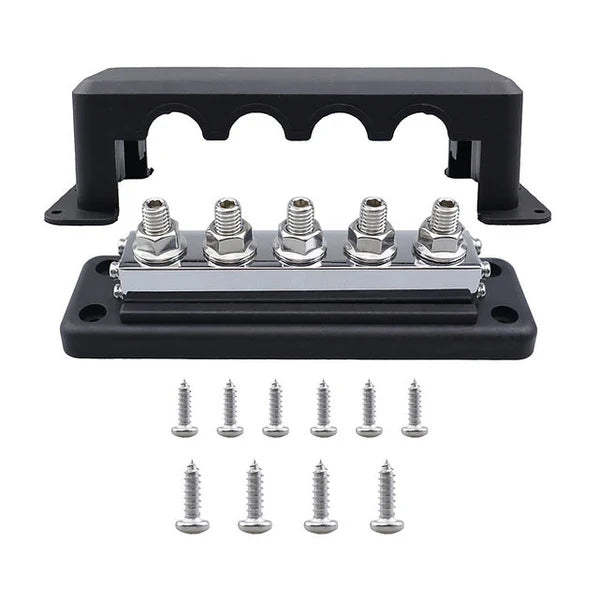

RUiXU Busbar | 3/8" (M10) Terminal Studs |  600A | RX5600

The RX5600 busbar is frequently utilized in configurations involving the RUiXU Lithi2-16 battery. It aids in the parallel connection of multiple battery units, ensuring balanced power distribution and streamlined wiring.

Dimensions (HxWxD)(with cover) :2.2 x 8 x 2.2 inch / 55 x 204 x 56 mm
Weight:1.7 lb / 0.75 kg

• Heavy Duty 5-Post Power/Ground Distribution Busbar
• (X5) 3/8" Terminal Post & (x4) 14mm Fastening Nuts
• Constructed out of Highly Conductive Nickel Coated Copper
• Features a Robust Polymer Mounting Base
• Each busbar is fitted out with a removable protection cover

Download

Datasheet
Sol-Ark 15K-2P_SpecSheet
Sol-Ark 15K-Brochure
RX_Lithi2-16-Spec.pdf
RX5600_RX8600_SPEC.pdf

User Manual & Installation Quick Guide
Sol-Ark 15K-2P_Manual
RX_Lithi2-16_operation_and_Maintenance_manual-V1.2.pdf

Certification
Sol-Ark 15K_UL1741
Sol-Ark 15K-FCC_Cert-1
