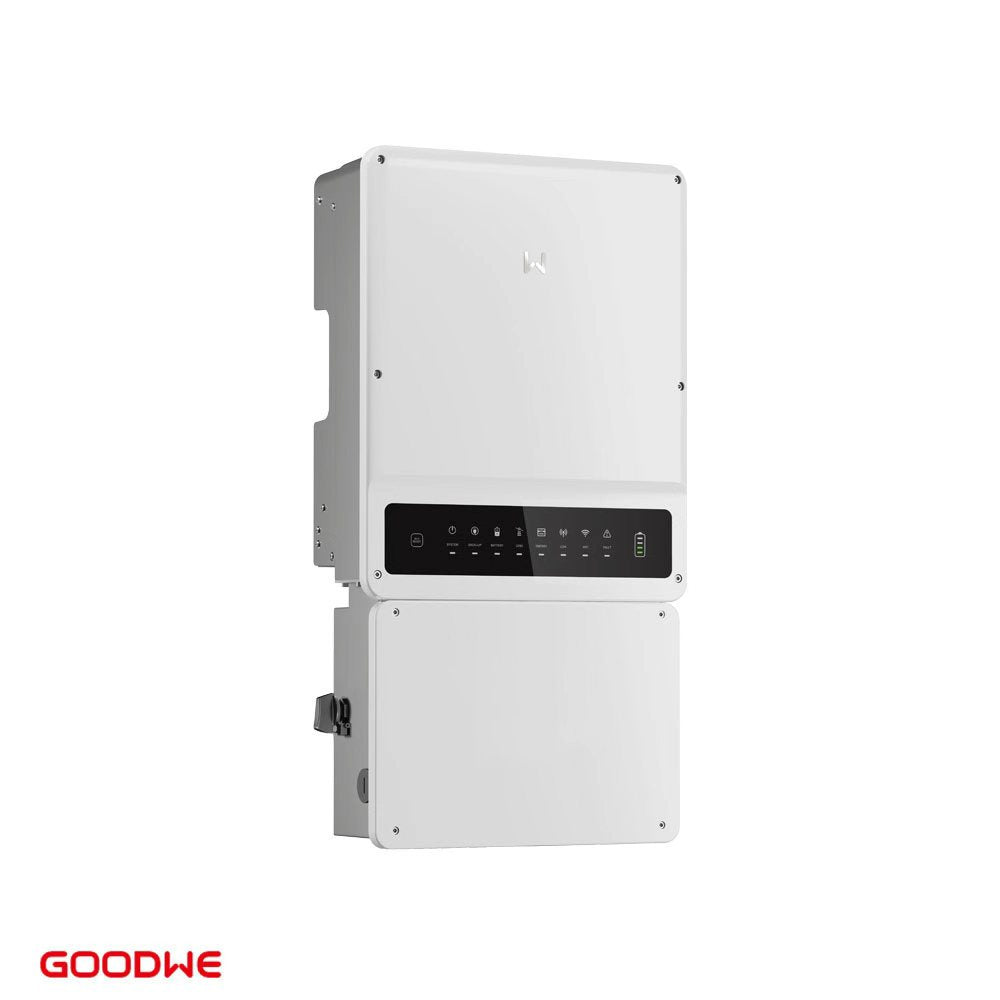

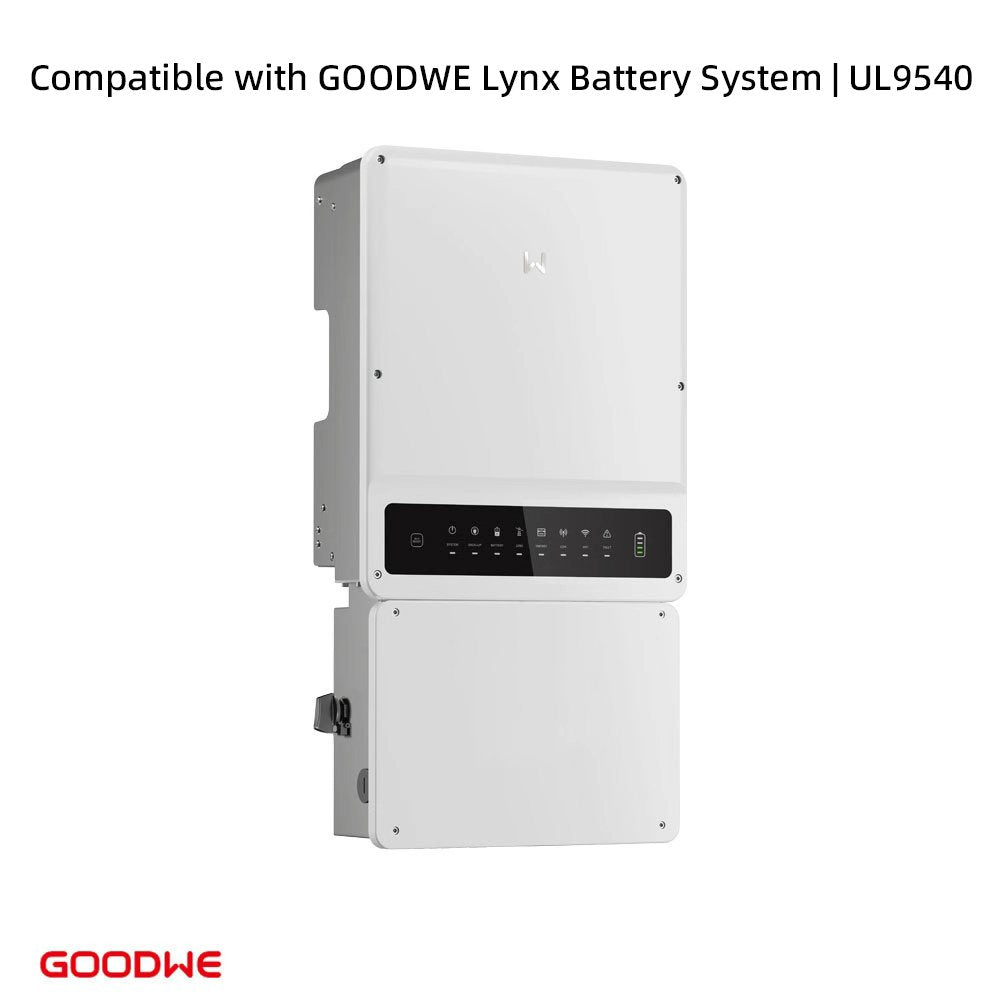

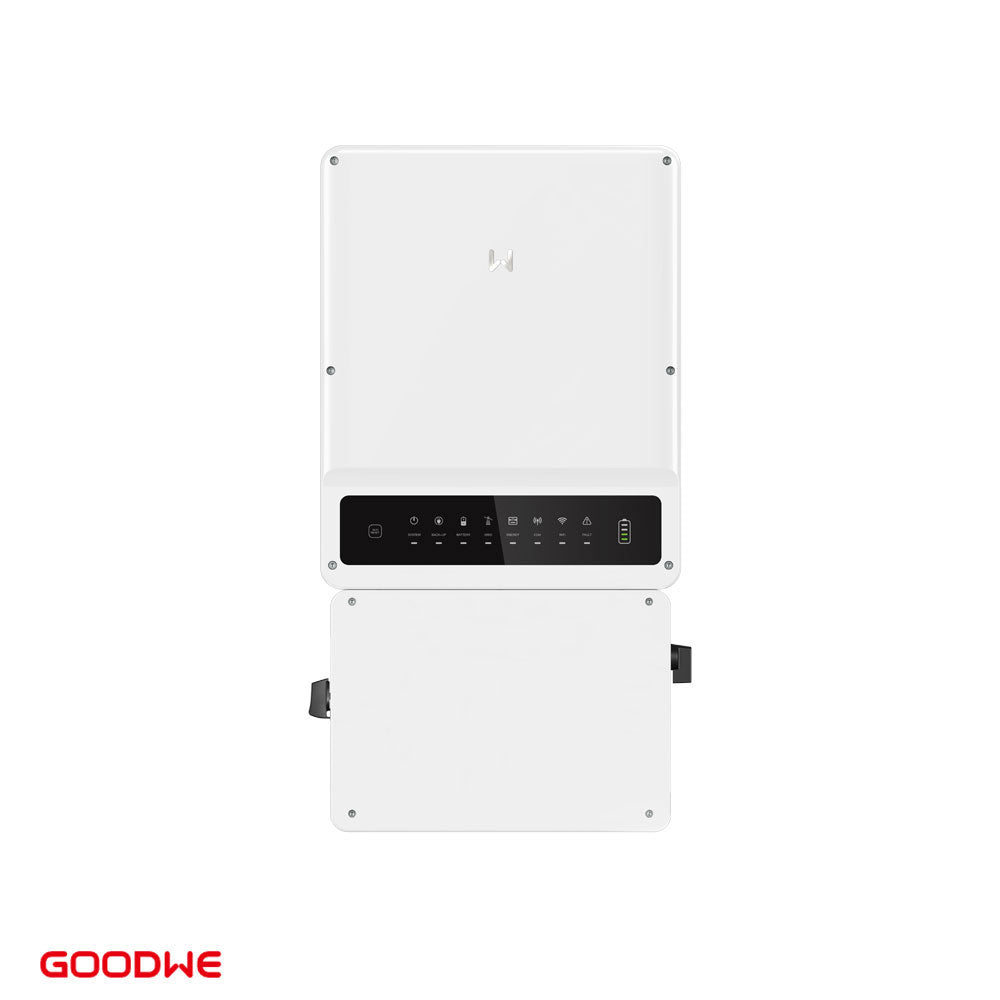

GoodWe GW7600A-BP 7.6kW Split Phase AC-Coupled HV Retrofit Inverter | Compatible with GoodWe Lynx Battery system Certificated UL9540

GoodWe’s A-BP Series is designed to supplement an existing on-grid PV system and connect with high voltage batteries to seamlessly upgrade to a full storage system. The inverter can boost the PV system without the grid, ensuring the grid-tied inverter stays connected if the grid is compromised. With frequency shifting, the A-BP can regulate the output power of the grid-tied inverter and change the AC frequency to prevent over charging the battery. With an inbuilt smart meter and plug & play AC connectors, the inverter is easy to install. The A-BP can support whole home backup and is compatible with various brands of grid-tied inverters.

Product Overview

Key Features:

• Micro-grid Applications

• Whole Home Backup

• Ultra Rapid Charge
• Frequency Shifting
• Smart Meter Integrated

Product Specifications:

General Data

• Dimensions(W*H*D): 16.3 * 31.1 * 6.9 inch( 415*791*175mm)
• Weight: 70.5lbs (32kg)
• Installation: Wall Bracket
• Communication with Portal: WiFi+ LAN(Optional)

Download

Datasheet
GW_A-BP_Datasheet-EN.pdf

User manuals
GW_A-BP_User_Manual-EN.pdf

Installation Quick Guide
GW_A-BP_Quick_Installation-EN.pdf

Certificate & Warranty
GW_A-ES, A-BP_Certificate UL9540_GW SECU-S, LG RESU, BYD HVL
GW_A-ES, A-BP, A-MS_Certificate UL1741
GW_Approved Battery Options Statement
GW_Battery_Compatibility_Overview-EN
