Growatt Hybrid Home Energy Storage System | MIN 7600TL-XH-US 7.6kW Storage Inverter + ARO 9.9kWh High Voltage Battery + ATS-XH-US (Auto Transfer Switch)

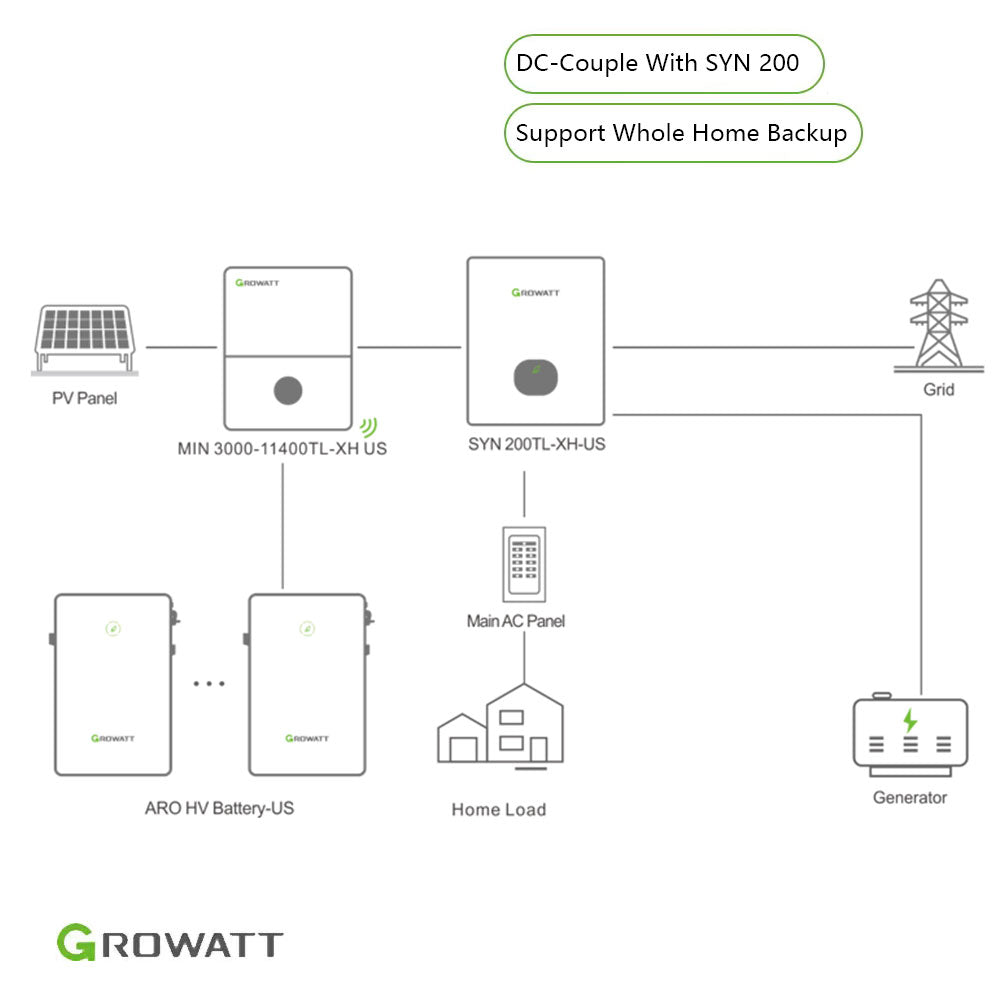

This Growatt Hybrid Off-Grid/Grid-Tie Solar & Home Energy Storage System Kit is a turnkey solution for home energy storage that can be used for both AC-coupled systems and DC-coupled systems. With a Growatt MIN 7600TL-XH-US 7.6kW output hybrid inverter, 9.9kWh Growatt ARO pre-assembled high voltage storage battery bank with 3 battery modules, and a Growatt ATS-XH-US backup box for automatic transfer switch and US split phase transform with a simultaneous output 11400w for partial home load backup.

This energy storage system is very suitable for households with daily electricity consumption ranging from 25 to 50+ kWh, especially for those with high-power loads such as electric vehicles and swimming pools. When working with an installed rooftop solar system, it can maximize self-consumption and independence from the grid, significantly reducing monthly electricity bills, improve the return on investment efficiency of the solar system, and provide the flexibility to handle various unexpected power outages at any time.

System Key Features:

• It greatly reduces the reliance on grid energy for household electricity by generating your own renewable energy, allowing for self-consumption, and ensuring a stable energy supply for your home.


•  Self-consumption means that the storage system can store the excess electricity generated by the rooftop solar panels during the day that cannot be immediately consumed, in the energy storage system. This stored energy can then be utilized during the evening when electricity demand and prices are both at peak rates. This home energy battery storage system maximizes the reduction, and even elimination, of your electricity bills, achieving self-consumption. It significantly enhances the utilization efficiency and returns on investment of the solar power system, especially in areas implementing Time of Use(TOU) electricity pricing policies. For example, in California's new solar energy policy NEM3.0, if there is no energy storage system, selling excess solar electricity to the grid during the day would not exceed 8 cents per kilowatt-hour, but when the solar power system does not generate electricity at night and electricity needs to be drawn from the grid, the price of electricity would not be lower than 30 cents per kilowatt-hour.


• In situations of unstable grid power or power outages, the system can intelligently switch to Off-grid mode, supplying power to your household appliances and loads through the energy storage system, enabling your home to have an independent energy supply.

Growatt MIN 7600TL-XH-US 7600kW Split-Phase Hybrid Inverter
The Growatt MIN 7600TL-XH-US  is a cutting-edge Grid-Tie inverter with multi-functional for Grid-Tie and battery storage systems. This model was designed specifically for residential energy storage systems, it also can support off-grid and solar systems when paired with Growatt ATS(Auto Transfer Switch).
The 4G/WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.

It has 3 MPP trackers with 6 strings (2 strings for each tracker)that can be connected, making it transformerless and particularly efficient. The CEC efficiency is 97.5% and the max efficiency is up to 98.4%. This is important when the PV system consists of areas with different strengths, such as an east-west orientation.

In the event of a power outage, this hybrid inverter work with ATS and switch to Off-grid mode then continues to supply one phase with a power output of 11400W home energy backup.
Key Features

• Battery ready for DC Coupled and AC Coupled systems
• Support backup power and dark start operations
• Multiple energy management modes support: self-consumption, zero export, TOU, and Off-grid
• Rapid shutdown solution and AFCI integrated
• Built-in 4G/Wi-Fi comm, with APP, IoT integrated cloud monitoring
• UL1741SA, CA Rule21 & HECO compliant

Datasheet

Standard Compliance

——>Download: Datasheet

Growatt ARO 9.9H-C1-US With 1 Pre-assembled 9.9kWh High Voltage Battery Storage System ( with BMS and 3 Battery modules )

This ARO battery system is compatible with MIN-XH US series battery-ready inverter with a capacity of 9.9kWh(BMS and 3 battery modules included) and is a high-performance, pre-assembled battery storage system with flexible capacity options.

Its pre-assembled design makes Installation extremely easy, just a plug-and-play solution that can save a lot of time.

Key Features

• Easy installation with pre-assembled design
• Flexible capacity options, support whole-home backup by parallel connection
• Excellent safety of LiFePO4 battery
• Cycle life > 6000
• Wide temperature tolerance -10-+45°C/14-113°F
• 10 years warranty

Datasheet

Certificates

——>Download: Datasheet



Growatt ATS-XH-US 11.4kW Backup Box
Growatt auto transfer switch and US split-phase transformer with a maximum sum of L1-N and L2-N simultaneous output 11400W
KEY FEATURES

• Backup Capability
  -Partial home load back up

• Easy Operation
  -Built-in split-phase transformer for 120V/240V output

——>Download: Datasheet



DOWNLOAD
Datasheet:
MIN 3000-7600TL-XH-US
ARO HV Battery System-US Datasheet
ATS-XH-US

User Manual & Quick Guide
MIN 3000-11400TL XH-US Quick Guide(V2)
MIN 3000-11400TL XH-US User Manual(V3)
ARO-US Quick Guide
ARO-US User Manual
ATS-XH-US USER QUICK GUIDE

Certificate
MIN 3-11.4KTL-XH-US and ARO-US UL9540
MIN 7600-11400TL XH-US UL1747 SA
ARO-US UL1973
ATS-XH UL1747
