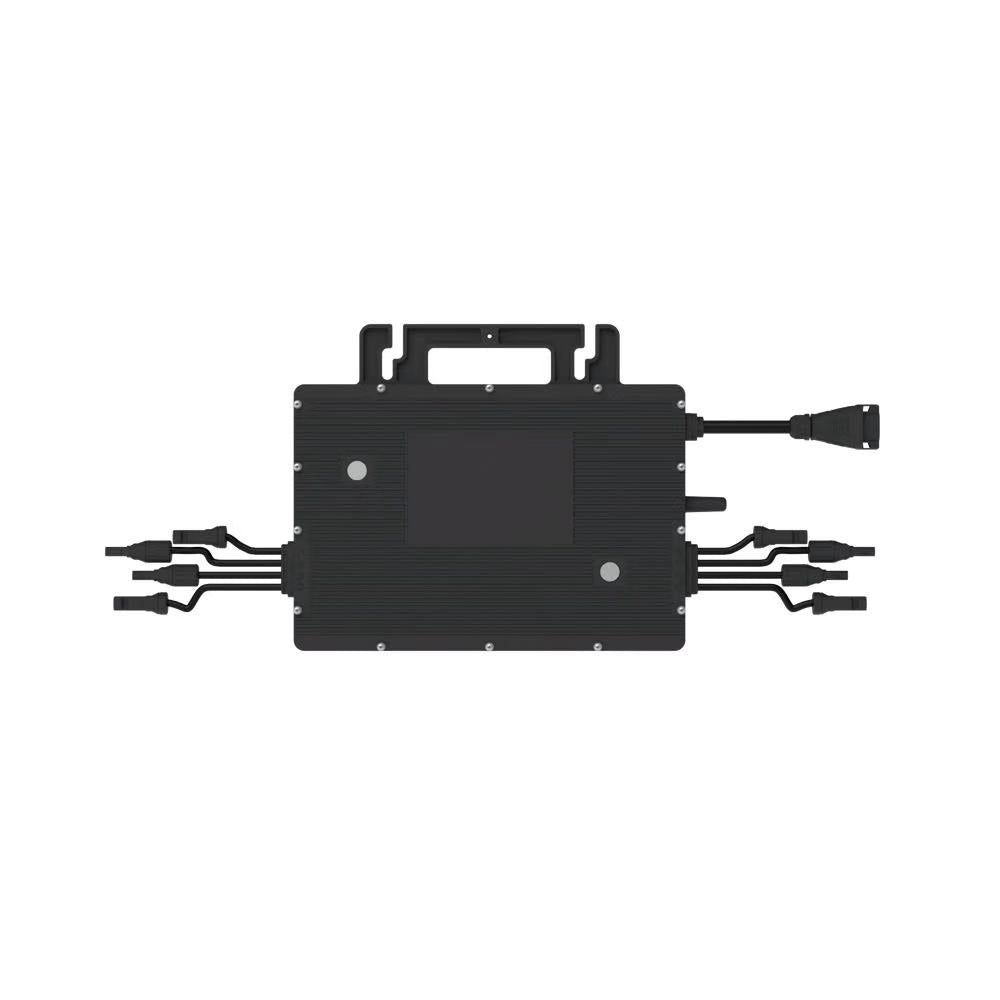

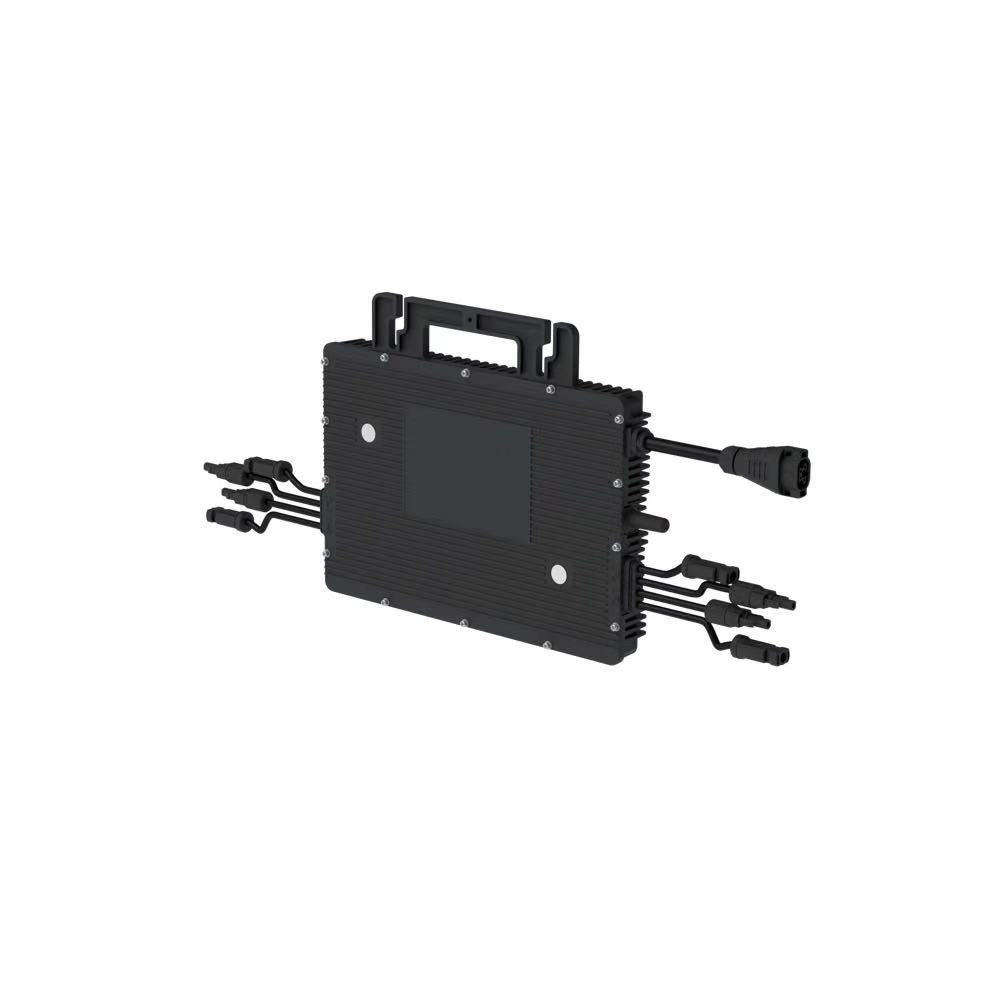

Hoymiles HMT-2000-4T-208-NA HMT 2000W 4 Module Microinverter | Commercial Use |UL1741

Hoymiles Power HMT-2000-4T HMT Microinverter

Hoymiles new micro-inverter HMT-2000 series are suitable for high-powered solar panels, which rank among the highest for 4-in-1 micro-inverters.

HMT micro inverters are designed for commercial and industrial applications (3 phase). This units is not compatible with residential 120/240V applications.

Features:

• Reactive Power Control CA Rule 21 Compliant
• Compliant with U.S. NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218 Rapid Shutdown of PV systems.
• High-powered micro-inverter with output power up to 2000 VA
• Independent MPPT and monitoring ensure greater energy harvest and easier maintenance
• With Reactive Power Control, compliant with EN 50549-1:2019, VDE-AR-N 4105:2018, VFR2019, etc.
• 4-in-1 design enables faster installation and comes with a lower cost
• Safer for rooftop solar stations with rapid shutdown compliance and isolated transformer
• Sub-1G wireless solution allows stable communication in commercial and industrial settings

Input Data(DC):

• Number of PV inputs: 4
• Module Power range, typical(W): 400 to 670+
• Maximum input voltage (V): 65
• MPPT voltage range (V): 16-60
• Maximum input current (A): 4x16

Output Data(AC):

• Peak output power (VA): 2000
• Maximum continuous output power (VA): 1918
• Maximum continuous output current (A): 7.99 | 9.22
• Nominal output voltage(V): 240 | 208
• Nominal output voltage range1(V): 240/211-264 | 208/183-228
• Nominal frequency/range1 (Hz): 60 / 55-65
• Maximum units per branch2 (10 AWG) 3 | 2

Mechanical Data:

• Dimensions (WxHxD)inches: 13.03" x 8.58" x 1.598"
• Weight: 5.56 kg (12.23 lbs)
• Cooling: Natural convection - no fans
• Enclosure: Outdoor-IP67 NEMA 6

Download
Datasheet:
Datasheet_HMT-1600_1800_2000-4T-208-NA_EN_V202310.pdf

User Manual & Guide
User_Manual_HMT-1600_1800_2000-4T-208-NA_EN_V2024.pdf
Quick_Installation_Guide_HMT-1600_1800_2000-4T-20.pdf
