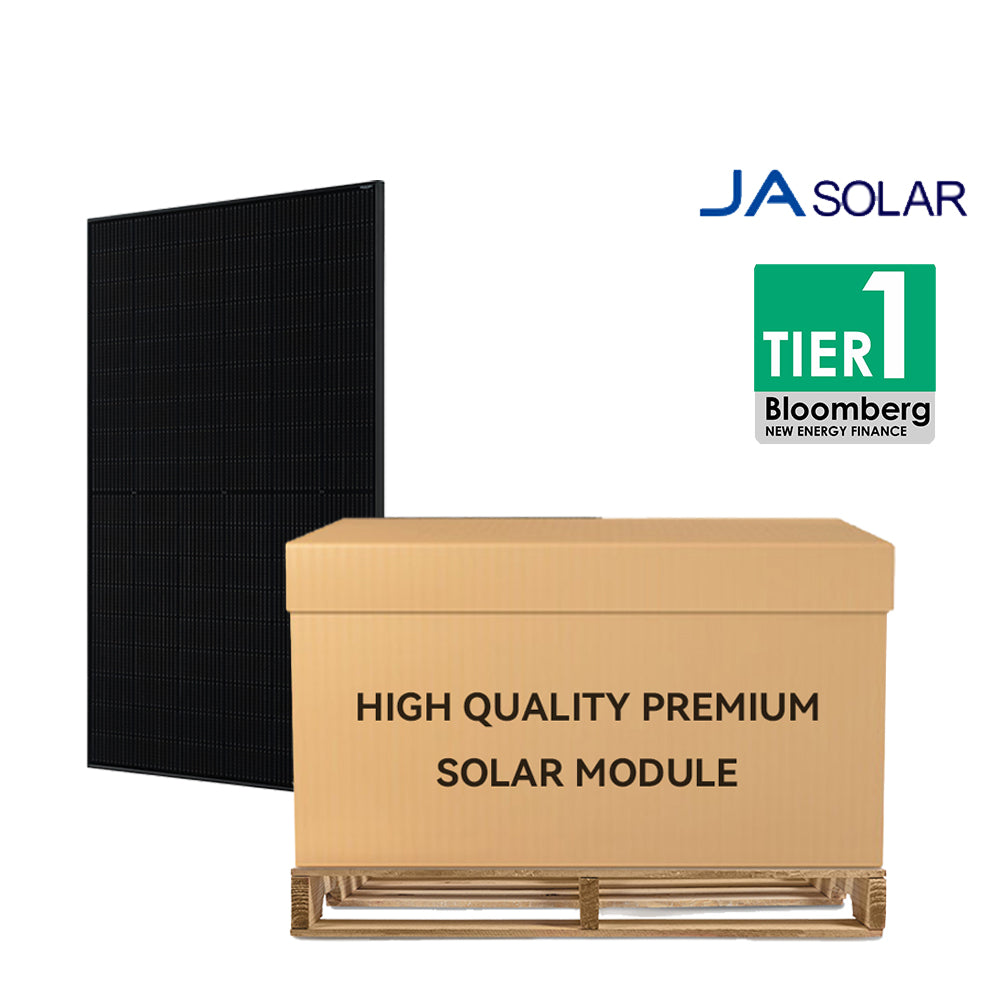

JA SOLAR 14.04kW Pallet | JAM54S31-390MR 390W Half-cell Full Black Mono PERC Solar Panel | Tier 1 Brand | Full Pallet: 36/ pallet ( 14.04kW )
JA SOLAR JAM54S31-390MR 390W full-black solar panel, assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent, reduced shading effect on the...
JA SOLAR JAM54S31-390MR 390W full-black solar panel, assembled with 11BB PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent, reduced shading effect on the energy generation, lower risk of the hot spot, as well as enhanced tolerance for mechanical loading. The JA Solar DEEP BLUE 3.0 Light series with its outstanding performance, making it suitable for residential, commercial, and utility-scale solar installations.
Product Overview
| Maximum Power | 390 watts |
| Technology | 11BB Half-cell black monocrystalline PERC |
| Cells | 108 |
| Efficiency | 20% |
| Dimensions | 67.8mm×44.65×1.18 inches(1722*1134*30mm) |
| Weight | 47.4lbs(21.5kg) |
| Frame color | Black |
| Warranty | 12 years product warranty, 25 years performance warranty |
| Certificate | UL61730 / IEC61215 / IEC 61215 |
Product Key Features
- Higher output power
- Lower LCOE
- Less shading and lower resistive loss
- Better mechanical loading tolerance
- Full black and superior aesthetics
- Tier1 / Top5 brand and excellent quality management system
Product Specifications
- Maximum Power: 390 W
- Maximum Power Voltage: 30.64V
- Max Power Current: 12.73A
- Open Circuit Voltage: 36.85V
- Short Circuit Current: 13.61A
- Maximum System Voltage: 1000V / 1500V DC
- Maximum Series Fuse Rating: 25A
- Front Side Maximum Static Loading: 5400Pa
- Rear Side Maximum Static Loading: 2400Pa
- Junction Box: IP68, 3 diodes
- Connectors: MC4-compatible
- Cables: 4mm,350mm / 1200mm (With Connectors)
Shipping and Packaging
- 36pcs per pallet
- 864pcs per 40'HC
About JA SOLAR
JA Solar is a leading global manufacturer of high-performance solar power products. Founded in 2005, the company specializes in the research, development, production, and sales of solar photovoltaic products. JA Solar offers a comprehensive range of solar panels, modules, and related solutions for residential, commercial, and utility-scale applications.
With a strong commitment to technological innovation, JA Solar has established itself as an industry pioneer, consistently delivering efficient and reliable solar solutions. The company's products are known for their exceptional performance, durability, and cost-effectiveness, making them highly sought after by customers worldwide.
JA Solar operates a global network of sales and service offices, ensuring prompt and efficient customer support. The company has also established strategic partnerships and collaborations with leading organizations in the solar industry to drive advancements and accelerate the adoption of renewable energy globally.
JA Solar's dedication to sustainable development and environmental responsibility is reflected in its efforts to produce clean energy solutions and reduce the carbon footprint. By providing high-quality solar products, JA Solar contributes to the global transition towards clean and renewable energy sources, making a positive impact on the environment and society as a whole.
