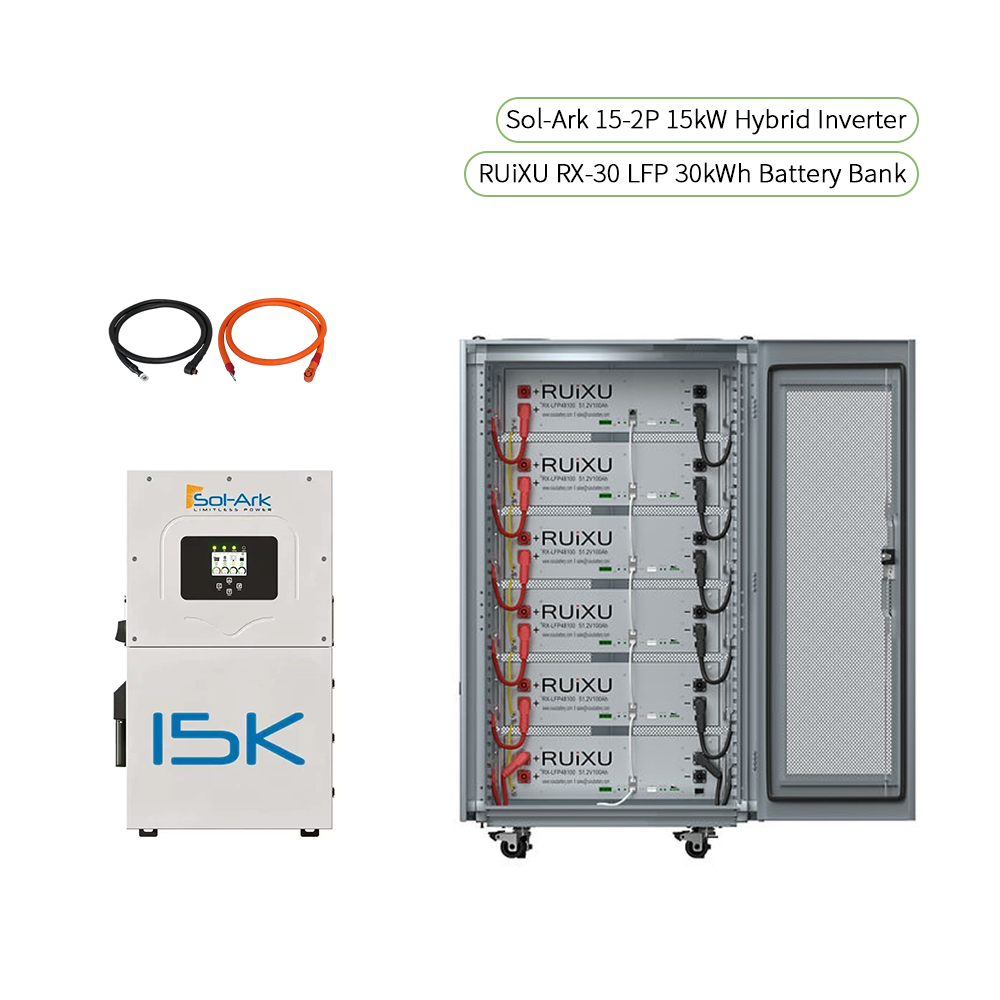

Sol-Ark 15K-2P 15kW Hybrid Solar Inverter + RUiXU RX-30 LFP 30kWh Battery Bank | RS485 or CAN | 10-Year Warranty

The Sol-Ark® Whole Home hybrid inverter is the most powerful and versatile home energy storage solution on the market today. The Sol-Ark 15K-2P hybrid solar inverter is a complete whole home backup. It can also power and charge your electric vehicles or generators and help reduce your monthly electricity bills.

RUiXU RX-30 LFP 30kWh Battery Bank is a high-capacity LFP energy storage system designed for residential, commercial, and off-grid applications. This modular system offers scalability, safety, and compatibility with various inverters, making it a versatile solution for energy storage needs.

Package Contents

• Sol-Ark 15K-2P 15kW Hybrid Solar Inverter
  (1) 15K-2P 15kW Hybrid Solar Inverter
  (1) CAT 5E communication cable
  (1) Temperature sensor
  (1) User manual
  (1) Wi-Fi / Ethernet antenna (dongle)
  (1) Current transformer sensors (CTs)


• RUiXU RX-30 LFP 30kWh Battery Bank
  (6) RUiXU 48V Server Rack battery (RX-LFP48100)
  (6) RJ45/CAT5e Patch Cable
  (6) Ground Cable
  (6) Sets 30cm Parallel 4AWG Cables per battery
  (1) Pre-assembled 6 Slot Battery Cabinet


Sol-Ark 15K-2P 15kW Hybrid Solar Inverter

Sol-Ark 15K-2P Pre-Wired All-In-One Hybrid Inverter System is an all-in-one system that has everything you need built-in. With a charger controller, a display with remote monitoring, and many other built-in features. This inverter is flexible, efficient, and simple to install to a Grid-tied, Off-Grid, or battery backup solar system while being able to manage power to and from Solar, Battery, Grid, Loads, and Generator. It's a great choice to simplify your installation.

Key Features

• Simple to install:
  all-in-one and with a touchscreen and friendly interface


• Grid-Tie mode:
  sell your power back to the grid, lower your electricity bill


• Time of use:
  use the battery system to minimize your grid power usage


• Meter Zero Mode:
  Smart meter included Zero on your electricity bill


• Fleet management:
  Quickly repair or adjust any system without being on-site


• Battery Agnostic:
  With a wide variety of 48V batteries ( lead or Lithium )


• DC and AC Coupling


Datasheet

RUiXU RX-30 LFP 30kWh Battery Bank

RUiXU battery packs are rack type residential lithium batteries, designed entirely for residential ESS applications, with our battery technology, you can easily combine it with a mainstream inverter in different scenarios to save your electrical bill & back up your
power during grid outage or unavailable.

RX-LFP48100

Nominal voltage: 51.2V
Nominal capacity@0.2C: 100Ah
Min. capacity@0.2C: 100Ah
Nominal energy: 5120Wh
Dimesion (W*D*H): 482.6 x 460 x 133mm | 19 x 18.1 x 5.23inch
Weight: ~47kg (103.6lb)

Communications

Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye,
Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
RS485: MPP, Voltronic, RCT, Alpha outback

Download

Datasheet
Sol-Ark 15K-2P_SpecSheet
Sol-Ark 15K-Brochure
RX-LFP48100_Spec.pdf

User Manual & Installation Quick Guide
Sol-Ark 15K-2P_Manual
RX-LFP48100_Operating_Manual V1.4.pdf

Certification
Sol-Ark 15K_UL1741
Sol-Ark 15K-FCC_Cert-1
RX_48100_UL1973_Certified.pdf
