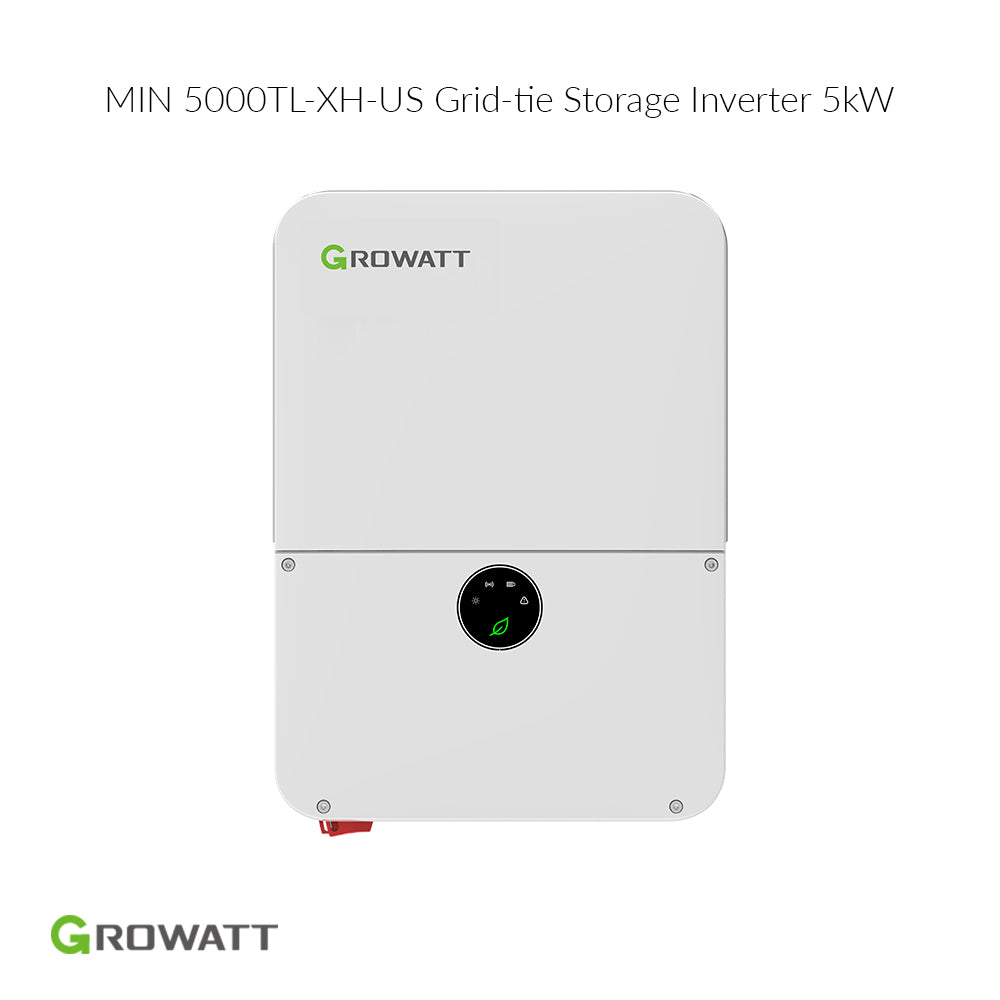

Growatt MIN 5000TL-XH-US 5.0kW Grid-Tie inverter | Compatible with Growatt ARO/APX HV Battery | Certificated UL9540

SKU: S-MIN5000-US
  • Battery Ready for DC Coupled and AC Coupled systems
  • High yields:
    - DC/AC Ratio up to 2.0
    - MPPT trackers 2 (Strings 2/2)
    - Max. efficiency 98.5%
  • With backup power and dark start operations
  • Support RSD and AFCI
  • Support multiple energy management modes:
    - Self-consumption;
    - Zero Export;
    - TOU and Off-grid
  • Comply with UL1741SA/SB, CA Rule 21 & HECO

See the specs

$1,198.00
Add to Wishlist

visapaypalmasteramerican expressshopify paydiscoverdiners clubapple paygoogle pay
Order in the next [totalHours] hours %M minutes to be processed in 72 hours or less and get it between and
Description

The Growatt MIN 5000TL XH-US  is a cutting-edge Grid-Tie inverter with multi-functional for building battery storage systems, compatible with Growatt ARO/APX HV battery. This model was designed specifically for residential energy storage systems, it also can support off-grid and solar systems when paired with Growatt ATS(Auto Transfer Switch).
The WiFi module is a plug-and-play monitoring device able to be connected directly to your inverter, allowing you to monitor the status of your power system online via your mobile phone or Website portal.

Product Overviews:

Manufacturer Growatt
Type Grid-Tie / Battery Storage
AC Power 5.0kW
MPP Trackers 2
MPPT Voltage Range 50~550V
Max Efficiency 98.2%
Compatible Battery Growatt ARO/APX HV Battery, LG Prime(Gen3) Battery
Electronics Protection Degree IP65 ( NEMA4X )
Warranty 10 years
Communications CAN2.0, RS485, SUNSPEC / APP, Website
Certificate UL1741, UL1741SA, UL1998, UL1699B, CAS C22.2, CA Rule21, UL9540



Key Features:

  • Leading Functions
    - Whole home backup
    - Dark start operation
    - Support RSD, AFCI, and RGM meter

  • High Yields:
    - DC/AC Ratio up to 2.0
    - Max. efficiency 98.0%

  • System Compatibility
    - DC-coupled and AC-Coupled systems
    - Self-consumption, Zero Export, TOU, and Off-Grid
    - UL1741SA/SB, CA Rule 21 & HECO

Product Specifications:
PV INPUT

  • Max PV Input Power:10.0 kW
  • Max Input Voltage: 600V
  • Full load Voltage Range: 210~500V
  • Max Input Current per MPTT: 13.5A
  • Max Short-circuit Current per MPTT: 16.9A
  • MPP Trackers: 2
  • Strings per MPP Tracker: 2/2

Battery Connection

  • Battery Voltage Range: 360~550V
  • Rated Battery Voltage: 400V
  • I/O DC Current: 14.3A
  • I/O DC Power: 5.0kW

 AC  OUTPUT (GRID)

  • Nominal Power: 5.0kW
  • Max Output Current: 21A
  • Nominal AC Voltage: 208/240V

GENERAL DATA

  • Dimensions(W*H*D): 15.75*22.4*6.98 inch( 400*569*170.5mm)
  • Weight: 32.5lbs (14.65kg)
  • Installation: Indoor, Outdoor, Wall-mounted
  • Monitoring Module: WiFi+ LAN, 4G(Optional)


Download
Datasheet
MIN 3000-7600TL-XH-US

User manuals
MIN 3000-11400TL XH-US User Manual(V3)

Installation Quick Guide
MIN 3000-11400TL XH-US Quick Guide(V2)

Certificate & Warranty
MIN 3000-7600TL XH-US UL1747 SA
MIN 3000-7600TL-XH-US UL1741SB
MIN 3-11.4KTL-XH-US and ARO-US UL9540
Growatt Inverter Warranty-10years
